2.4.9 Report files in table format

The report section of a report in table format displays the report details and the table.

Organization of this subsection

(1) Subresource columns - Instance Rows
(2) Instance columns - Subresource rows
(3) According to instance
(4) According to subresource

(1) Subresource columns - Instance Rows

The following subsections describe the displayed contents. Figure 2-47 shows the display format.

(a) Report details

The collection target server name, unit, subresource names, and instance names are displayed as report details.

(b) Table

A row is created for each instance name and a column is created for each subresource name. The minimum value, maximum value, and average for the report term are displayed as the report result.

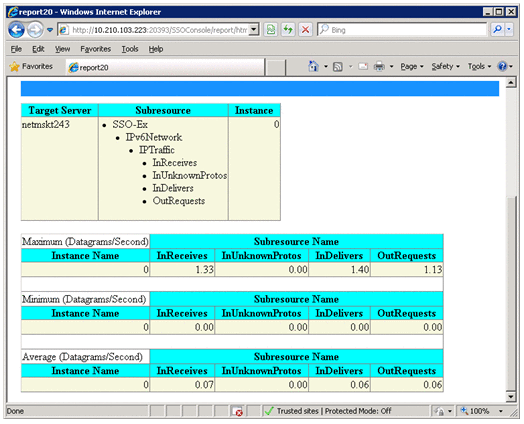

Figure 2‒48: Table with subresource-based columns and instance-based rows

To Page Top

(2) Instance columns - Subresource rows

The following subsections describe the displayed contents. Figure 2-48 shows the display format.

(a) Report details

The collection target server name, unit, subresource names, and instance names are displayed as report details.

(b) Table

A row is created for each subresource name and a column is created for each instance name. The minimum value, maximum value, and average for the report term are displayed as the report result.

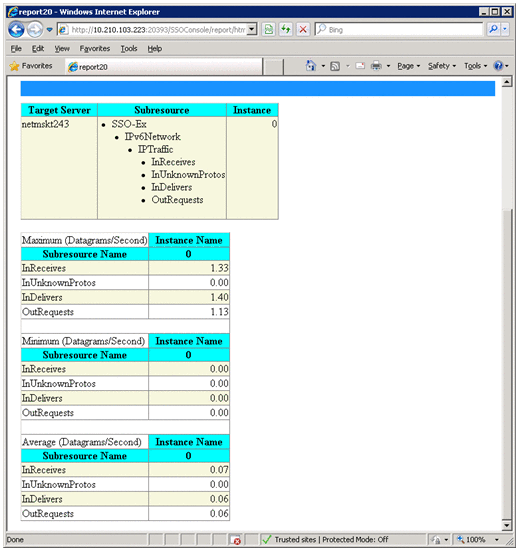

Figure 2‒49: Table with instance-based columns and subresource-based rows

To Page Top

(3) According to instance

The following subsections describe the displayed contents. Figure 2-49 shows the display format.

(a) Report details

The collection target server name, unit, subresource names, and instance names are displayed as report details.

(b) Table

A subresource name is displayed as the parent category of a row, and instance names are displayed as child categories of that row. The minimum value, maximum value, and average for the report term are displayed as the report result.

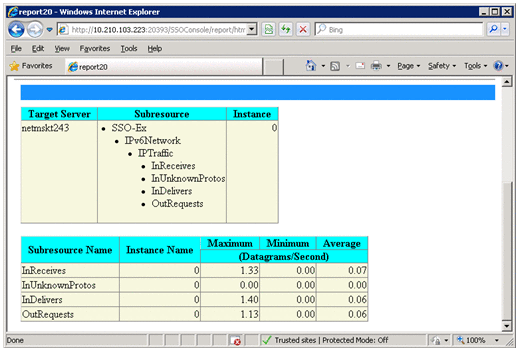

Figure 2‒50: Table created from the perspective of instances (according to instance)

To Page Top

(4) According to subresource

The following subsections describe the displayed contents. Figure 2-50 shows the display format.

(a) Report details

The collection target server name, unit, subresource names, and instance names are displayed as report details.

(b) Table

An instance name is displayed as the parent category of a row, and the subresource name is displayed as the child category of that row. The minimum value, maximum value, and average for the report term are displayed as the report result.

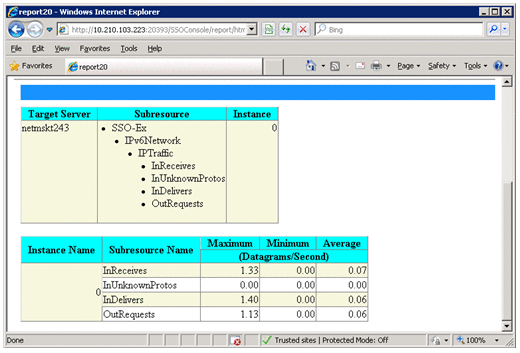

Figure 2‒51: Table created from the perspective of subresources (according to subresource)
