15.8 Reviewing global1 inventory

Do not complete this section until NNMi completes a good discovery. For details, see 3.3.3 Checking discovery progress.

To view the node information regional1 has forwarded to global1, complete the following steps:

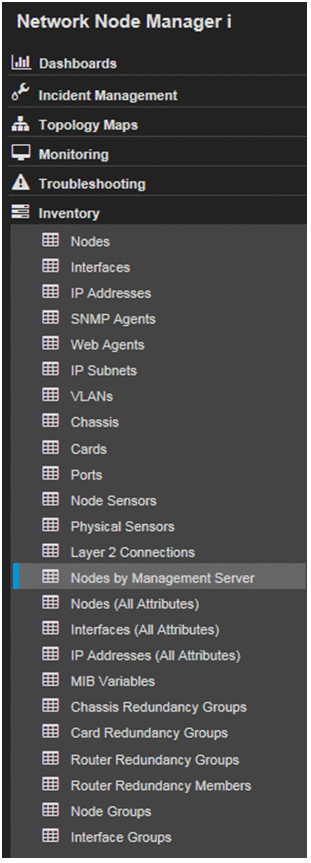

1. From the global1 NNMi console, navigate to the Nodes by Management Server form located in the Inventory workspace.



2. Assume that regional1 passed information about switch node102130 to global1.

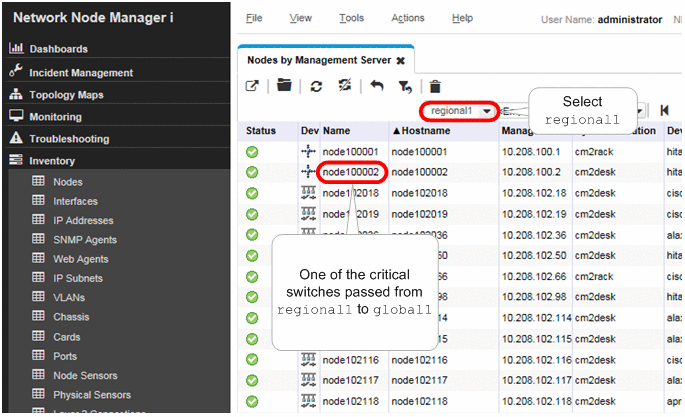

   After selecting regional1, the inventory might look as follows:



Repeat steps 1 through 2 to view the device inventory passed to global1 from each other connected regional manager.
