15.7 Determining the connection status from global1 to regional1 and regional2

To check the connection status from global1 to regional1 and regional2, complete the following steps:

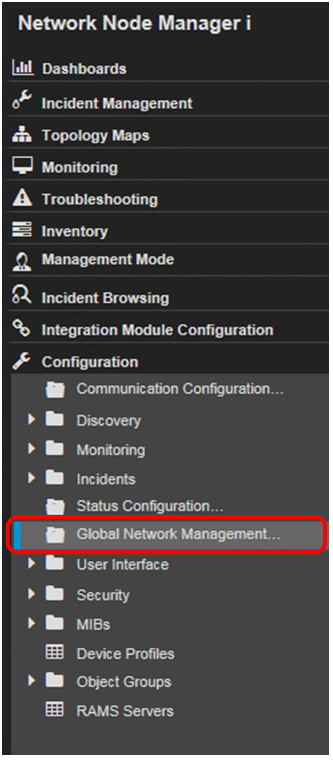

1. From the global1 NNMi console, click Global Network Management in the Configuration workspace.

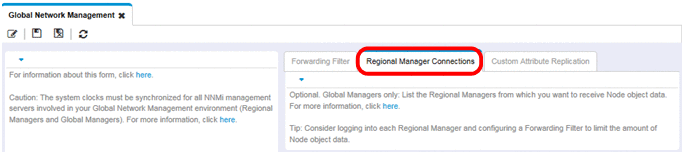

2. Click the Regional Manager Connections tab.



3. Check the status of regional1 and regional2 by looking at their connection status.

   When their connection statuses are shown as Connected, it means they are functioning properly.

   For details, see Determine the State of the Connection to a Regional Manager in NNMi Help.

Do not continue to the next section until NNMi completes a good discovery. For details, see 3.3.3 Checking discovery progress.
