1.10.5 Change Monitoring Agent window

If a single report is associated with multiple monitoring agents, the Change Monitoring Agent window allows you to select and filter the monitoring agent to be displayed.

A single report is associated with multiple monitoring agents in the following situations.

Agent type	Situation
PFM - Agent	Multiple instances exist. For PFM - Agent for Service Response, the agent is set up on multiple hosts.
PFM - RM	The same host is being monitored.

The following figure shows the Change Monitoring Agent window.

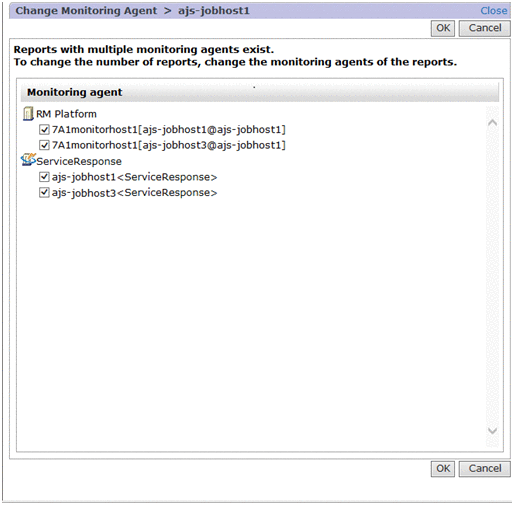

Figure 1‒146:  Change Monitoring Agent window

The following describes the displayed items:

Close

Closes the Change Monitoring Agent window.

OK button

Applies the settings and returns to the Select Report window.

Cancel button

Discards the specified settings and returns to the Select Report window.

Contents area

Displays the monitoring agents for which reports can be displayed. Select a check box to indicate a monitoring agent to be displayed.
