1.10.2 Window for switching PFM - Web Console

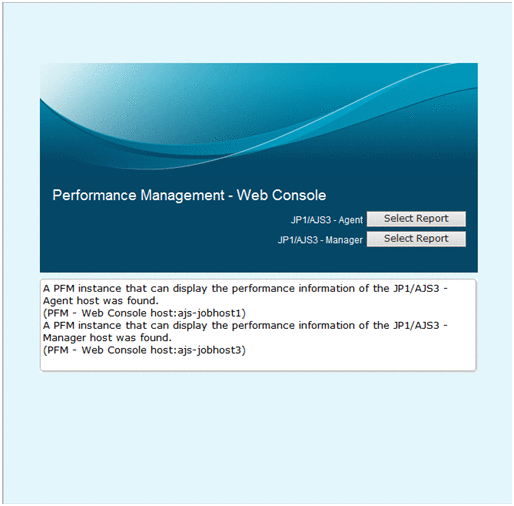

If the target report cannot be displayed from the PFM - Web Console preset as the connection destination, processing to search for and switch to another PFM - Web Console that can display the report starts. This window is displayed while the search-and-switch processing is being performed. As a result of processing, if switching to the PFM - Web Console that can display the report finishes normally, the Select Report window appears.
If JP1/AJS3 is linked and JP1/AJS3 - Manager and JP1/AJS3 - Agent are monitored by different Performance Management systems, you can start PFM - Web Console from JP1/AJS3 - Manager and JP1/AJS3 - Agent separately.
Note that if the target report can be displayed from the preset PFM - Web Console for the connection destination, the Select Report window is directly displayed rather than this window being displayed.
|
|
![[Figure]](GRAPHICS/ZU205002.GIF)
The following describes the displayed items:
- Select Reports button
-
Displays the Select Report window of JP1/AJS3 - Agent or JP1/AJS3 - Manager. Click the Select Reports button of the product for which you want to display reports. This button is displayed only when the following conditions are met:
-
The window is displayed from a window of JP1/AJS3.
-
The Performance Management system that is monitoring JP1/AJS3 - Agent is different from the Performance Management system that is monitoring JP1/AJS3 - Manager.
- Important
-
In a Firefox browser, if you click the Select Reports button when the Select Report window is already open, Firefox might not display the window in the foreground, depending on the browser specifications.
If this occurs, display the opened Select Report window in the foreground by clicking the appropriate button on the taskbar, and then continue operations.
-
- Text display area
-
Displays the progress of search-and-switch processing.
