1.6.4 Properties window

The Properties window displays the properties of the selected bookmark or combination bookmark. To display this window, in the Bookmarks window, select a bookmark or a combination bookmark. Then, from the method frame, choose the Properties method. When you select a combination bookmark, the information about baselines as well as the registered reports is displayed in the same format. Note that you cannot change the settings of properties in the Properties window.

The following figure shows the Properties window.

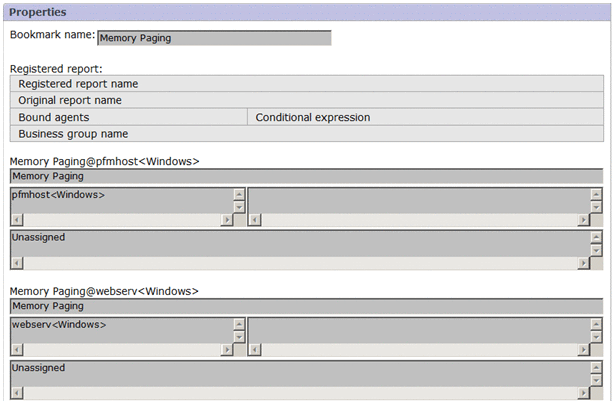

Figure 1‒102: Properties window

[Figure]

The following describes the displayed items:

Bookmark name

Displays the name of the selected bookmark.

Registered report name

Displays the name of the report registered in the selected bookmark.

Original report name

Displays the name of the original report for the report that is displayed in Registered report name.

Bound agents

Displays the agent name for the report registered in the selected bookmark.

Conditional expression

Displays the conditional expression registered in the selected bookmark.

Business group name

Displays the name of the business group to which the agent displayed in Bound agents belongs. This item is displayed when the business group access control functionality is enabled.
