Hitachi

JP1 Version 12 JP1/Performance Management Reference


1.6.2 New Folder window

The New Folder window is used to create a new bookmark folder under the root or the selected bookmark folder. To display this window, in the Bookmarks window, from the method frame, choose New Folder.

The following figure shows the New Folder window.

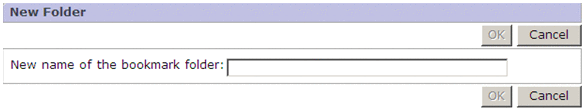

Figure 1‒100: New Folder window

[Figure]

The following describes the displayed items:

OK button

Adds a folder with the name specified in Name of new folder under the object selected in the navigation frame. If a bookmark folder or bookmark with the same name already exists at the same level in the hierarchy, the new folder cannot be created.

Any leading and trailing spaces in the entered folder name are deleted automatically.

Cancel button

Cancels the operation and clears the information frame.

Name of new folder

Enter a folder name by using 1 to 64 single-byte or two-byte characters.

You can enter both single-byte and two-byte characters for the folder name.
