1.5.1 Transitions from the Reports window

The following shows the window transitions from the Reports window:

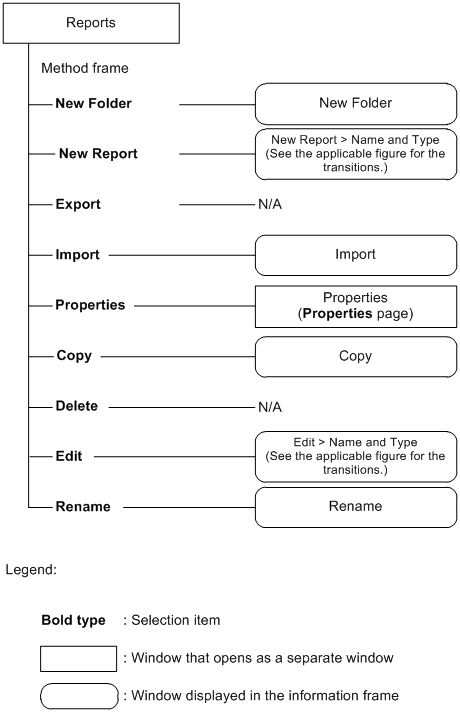

Figure 1‒79: Window transitions from the Reports window

The following shows the transitions of the transitions of the windows for creating and editing report definitions in wizard format. The following figure shows the transitions from the New Report > Name and Type or Edit > Name and Type window.

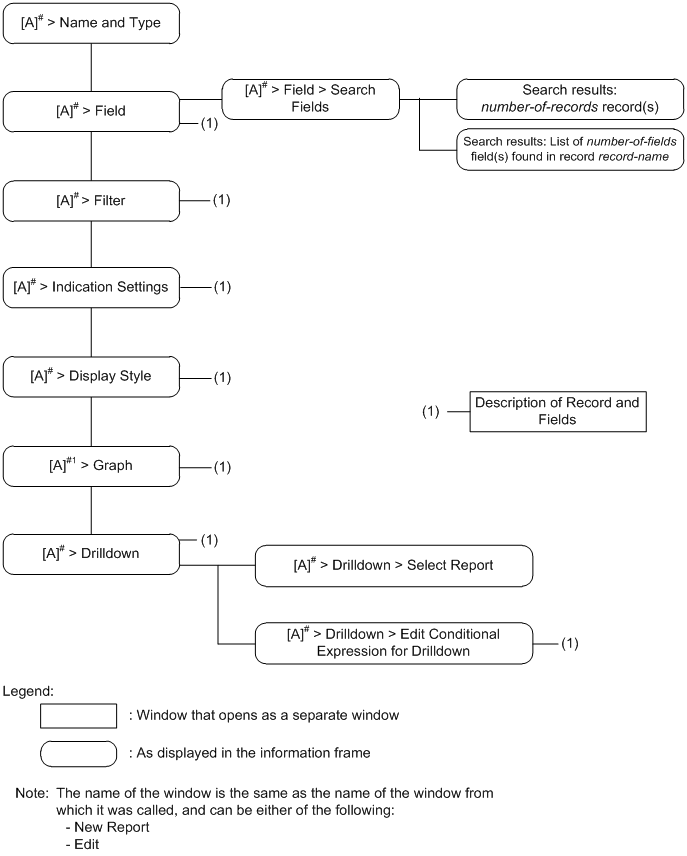

Figure 1‒80: Window transitions for creating and editing report definitions
