F.3 Installation order during migration from 07-10 or earlier to 08-00 or later
This section describes the installation order when upgrading Performance Management program from 07-10 or earlier to 08-00 or later. The uninstallation order is in the reverse order of installation.
- Organization of this subsection
(1) When migrating to PFM - Manager to 08-00 or later

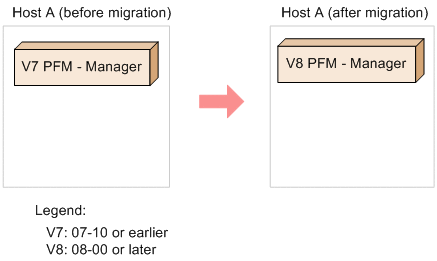

(a) When migrating to PFM - Manager to 08-00 or later
![[Figure]](GRAPHICS/ZU199016.GIF)
- Installation order
-
-
Perform an overwrite installation of 08-00 or later of PFM - Manager over the previous installation.
-

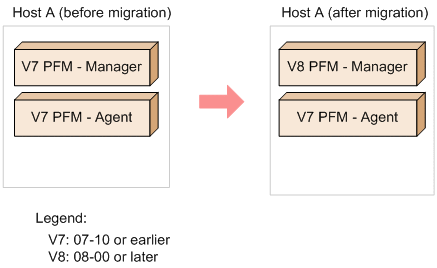

(b) When migrating only PFM - Manager to 08-00 or later in an environment where 07-10 or earlier of PFM - Manager and PFM - Agent have been installed on the same host
![[Figure]](GRAPHICS/ZU199020.GIF)
- Installation order
-
-
Perform an overwrite installation of 08-00 or later of PFM - Manager over the previous installation.
-
- Note:
-
In this configuration, when uninstalling PFM - Manager, also uninstall 07-00 or earlier of PFM - Agent.
(2) When migrating to PFM - Agent to 08-00 or later

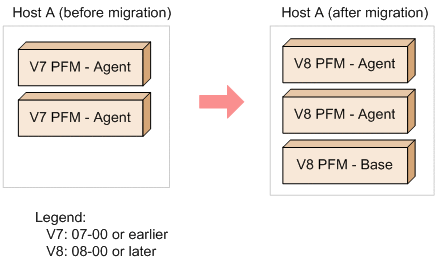

(a) When migrating all of one or more PFM - Agents to 08-00 or later
![[Figure]](GRAPHICS/ZU199017.GIF)
- Installation order
-
-
Perform a new installation of 08-00 or later of PFM - Base.
-
Perform an overwrite installation of 08-00 or later of PFM - Agent over the previous installation.
-
- Note:
-
You need only install one PFM - Base even if multiple PFM - Agents are installed on a single host.
Additionally, there is no installation order between PFM - Agents.

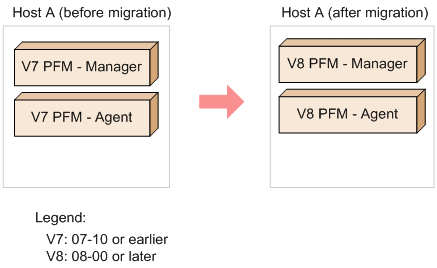

(b) When migrating PFM - Manager and PFM - Agent to 08-00 or later in the environment where 07-10 or earlier of PFM - Manager and PFM - Agent have been installed on the same host
![[Figure]](GRAPHICS/ZU199018.GIF)
- Installation order
-
-
Perform an overwrite installation of 08-00 or later of PFM - Manager over the previous installation.
-
Perform an overwrite installation of 08-00 or later of PFM - Agent over the previous installation.
-
- Note:
-
When you install PFM - Manager and PFM - Agent on the same host, there is no need to install PFM - Base.

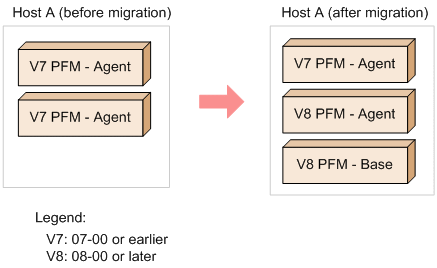

(c) When migrating only parts of PFM - Agent to 08-00 or later in an environment where 07-00 or earlier of multiple PFM - Agents have been installed on a single host
![[Figure]](GRAPHICS/ZU199019.GIF)
- Installation order
-
-
Perform a new installation of 08-00 or later of PFM - Base.
-
Perform an overwrite installation of 08-00 or later of PFM - Agent over the previous PFM - Agent to be upgraded.
-
- Note:
-
When uninstalling PFM - Base in this configuration, also uninstall 07-00 or earlier and 08-00 or later of PFM - Agent.

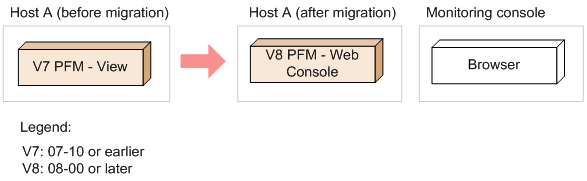

(3) When migrating 07-00 or earlier of PFM - View to 08-00 or later of PFM - Web Console
![[Figure]](GRAPHICS/ZU199022.GIF)
- Installation order
-
-
Perform a new installation of 08-00 or later of PFM - Web Console.
-
- Note:
-
When you use only PFM - Web Console as a monitoring console environment, you are permitted to uninstall 07-00 or earlier of PFM - View.

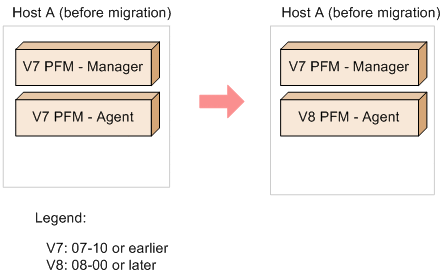

(4) Configurations of Performance Management that must not be combined
Performance Management cannot be used in the following configuration.
-
Migrating only PFM - Agent to 08-00 or later in the environment where 07-10 or earlier of PFM - Manager and PFM - Agent have been installed on the same host.
![[Figure]](GRAPHICS/ZU199021.GIF)
- Note:
-
When PFM - Manager and PFM - Agent are installed on the same host, the prerequisite product of PFM - Agent of 08-00 or later becomes PFM - Manager 08-00 or later. As a result, if you are using PFM - Agent 08-00 or later, you must use PFM - Manager 08-00 or later. However, PFM - Base cannot be installed in this environment, because PFM - Manager and PFM - Base are mutually exclusive regardless of version.
