JP1 Version 12 JP1/Performance Management Planning and Configuration Guide

5.1.3 Installation procedures

This subsection describes the order of installing Performance Management programs on hosts, and the procedure to install programs from the distribution media. It also describes the procedure to install the PFM - Web Console program.

Organization of this subsection

(1) Program installation steps

Note:

For Performance Management programs, you can install monitoring manager, monitoring console server, and monitoring agent in any order.

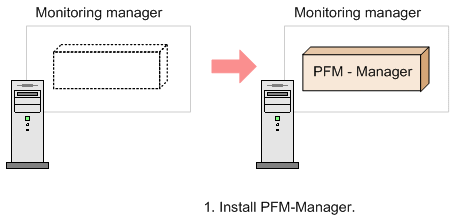

(a) Steps to install the monitoring manager

Install PFM - Manager on the monitoring manager.

[Figure]

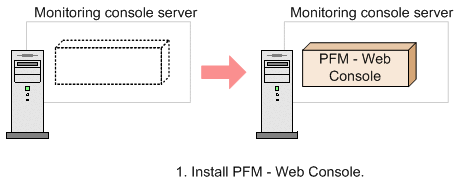

(b) Steps to install the monitoring console server

Install PFM - Web Console on the monitoring console server.

[Figure]

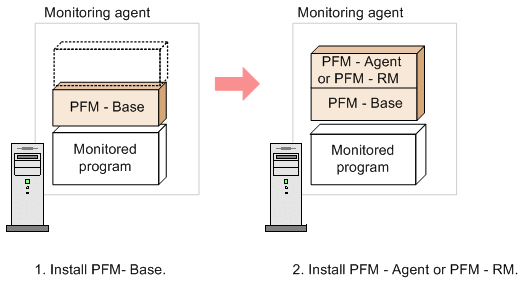

(c) Steps to install the monitoring agent

First Install PFM - Base and then install PFM - Agent or PFM - RM. You cannot install PFM - Agent or PFM - RM on a host that does not have PFM - Base installed.

If you install PFM - Agent or PFM - RM and PFM - Manager on the same host, install PFM - Manager first, and then PFM - Agent or PFM - RM.

[Figure]

For details about the installation procedure, see the appropriate PFM - Agent or PFM - RM manual.

To Page Top

(2) Installing programs

There are two ways to install Performance Management programs. One method is to install the programs from the distribution media, and the other is to remotely install the programs by using JP1/Software Distribution. For details about how to use JP1/Software Distribution, see the following manuals:

The procedures to install programs from the distribution media for respective OSs are as follows.

To Page Top

(3) In HP-UX (PFM - Base only)

Important

The host name on which PFM - Base is installed can be no longer than 8 bytes, even if the Node and Host Name Expansion feature is enabled. If you need to run PFM - Base on a host whose name is more than 8 bytes long, use the following workaround when you install PFM - Base:

  1. Change the host name acquired by the uname -n command so that it contains

8 or fewer bytes.

  1. Install PFM - Base.

  2. Use the function for setting monitoring host names to assign an appropriate alias.

    Specify the alias using 1 to 32 bytes of single-byte alphanumeric characters. You cannot specify localhost, an IP address, or a logical host name that is in use on the same host.

  3. Set the uname_eoverflow kernel parameter to 0.

    Example: kctune uname_eoverflow=0

  4. If needed, change the host name acquired by the uname -n command to the host name that you want the host to use in the system.

  5. Set up Performance Management.

  1. Log on as the root user to the host where you want to install the programs, or use the su command to assume root user privileges.

  2. Stop all Performance Management services that might be running on the local host.

    The services that need to be stopped are any Performance Management services running on the physical and logical hosts. For details about how to stop services, see the chapter that explains how to start and stop Performance Management in the JP1/Performance Management User's Guide.

  3. Load the distribution media.

  4. Execute the mount command to mount the applicable device.

    For example, to mount the applicable device to the mount directory, execute the following command:

    /usr/sbin/mount -F cdfs -r device-special-file-name mount-directory-name

    Note that the command to execute varies depending on the environment.

  5. Execute the following command to start Hitachi Program Product Installer:

    mount-directory-name/IPFHPUX/setup mount-directory-name

    Hitachi Program Product Installer starts and the initial window appears.

  6. From the initial window, enter I.

    A list of programs that can be installed is displayed.

  7. Select a program you wish to install.

    To select a program, move the cursor to the desired program and then select it by pressing the space key.

  8. Enter I.

    For a new installation of PFM - Base, the setting window of PFM - Manager for the connection destination is displayed. For an overwrite installation, first the existing information on PFM - Manager for the connection destination is inherited, and then the program is installed.

  9. If the setting window of PFM - Manager for the connection destination is displayed, enter the host name of the PFM - Manager to be connected.

    You do not have to set PFM - Manager for the connection destination during installation. You can set it later. If you do not set PFM - Manager for the connection destination during installation, the physical host name of the agent host is used. After the installation, change PFM - Manager for the connection destination. For details about changing PFM - Manager for the connection destination, see 5.3.2 Changing the PFM - Manager for the connection destination.

    Important

    In this procedure, only one host name can be specified. If you want to create a multiple-monitoring configuration, do not specify the host name of PFM - Manager for the connection destination during installation. After you complete installing PFM - Base, change PFM - Manager for the connection destination.

  10. Upon a successful installation, enter Q.

    This returns to the initial window of Hitachi Program Product Installer.

To Page Top

(4) In Solaris (PFM - Base only)

  1. Log on as the root user to the host where you want to install the programs, or use the su command to assume root user privileges.

  2. Stop all Performance Management services that might be running on the local host.

    The services that need to be stopped are any Performance Management services running on the physical and logical hosts. For details about how to stop services, see the chapter that explains how to start and stop Performance Management in the JP1/Performance Management User's Guide.

  3. Load the distribution media.

  4. Execute the following command to start Hitachi Program Product Installer#:

    mount-directory-name/SOLARIS/setup mount-directory-name

    Hitachi Program Product Installer starts and the initial window appears.

    Note that the command to execute varies depending on the environment.

  5. From the initial window, enter I.

    A list of programs that can be installed is displayed.

  6. Select a program you wish to install.

    To select a program, move the cursor to the desired program and then select it by pressing the space key.

  7. Enter I.

    For a new installation of PFM - Base, the setting window of PFM - Manager for the connection destination appears. The setting window appears only when performing a new installation of PFM - Base on a host that does not already have version 08-00 or earlier of PFM - Agent installed. If you install PFM - Base on a host that has version 08-00 or earlier of PFM - Agent installed, or if you perform an overwrite installation of PFM - Base, the existing settings of PFM - Manager for the connection destination are inherited.

  8. If the setting window of PFM - Manager for the connection destination appears, enter a host name of PFM - Manager for the connection destination.

    You do not have to set PFM - Manager for the connection destination during installation. You can set it later. If you do not set PFM - Manager for the connection destination during installation, the physical host name of the agent host is used. After the installation, change PFM - Manager for the connection destination. For details about changing PFM - Manager for the connection destination, see 5.3.2 Changing the PFM - Manager for the connection destination.

    Important

    In this procedure, only one host name can be specified. If you want to create a multiple-monitoring configuration, do not specify the host name of PFM - Manager for the connection destination during installation. After you complete installing the Performance Management programs, change PFM - Manager for the connection destination.

  9. Upon a successful installation, enter Q.

    This returns to the initial window of Hitachi Program Product Installer.

#

In an environment where the automount function is disabled, use the /usr/sbin/mount command in the following manner to mount the applicable device prior to starting Hitachi Program Product Installer:

/usr/sbin/mount -F hsfs -r device-special-file-name mount-directory-name

Note that the command to execute varies depending on the environment.

To Page Top

(5) In AIX (PFM - Base only)

  1. Log on as the root user to the host where you want to install the programs, or use the su command to assume root user privileges.

  2. Stop all Performance Management services that might be running on the local host.

    The services that need to be stopped are any Performance Management services running on the physical and logical hosts. For details about how to stop services, see the chapter that explains how to start and stop Performance Management in the JP1/Performance Management User's Guide.

  3. Load the distribution media.

  4. Execute the mount command to mount the applicable device.

    For example, to mount the applicable device to the mount directory, execute the following command:

    /usr/sbin/mount -r -v cdrfs device-special-file-name mount-directory-name

  5. Execute the following command to start Hitachi Program Product Installer:

    mount-directory-name/AIX/setup mount-directory-name

    Hitachi Program Product Installer starts and the initial window appears.

  6. From the initial window, enter I.

    A list of programs that can be installed is displayed.

  7. Select a program you wish to install.

    To select a program, move the cursor to the desired program and then select it by pressing the space key.

  8. Enter I.

    For a new installation of PFM - Base, the setting window of PFM - Manager for the connection destination appears.

    For an overwrite installation of PFM - Base, the existing settings of PFM - Manager for the connection destination are inherited and the PFM - Base programs are installed.

    Also, if you select a program other than PFM - Base, the selected program is installed.

  9. If the setting window of PFM - Manager for the connection destination appears, enter a host name of PFM - Manager for the connection destination.

    You do not have to set PFM - Manager for the connection destination during installation. You can set it later. If you do not set PFM - Manager for the connection destination during installation, the physical host name of the agent host is used. After the installation, change PFM - Manager for the connection destination. For details about changing PFM - Manager for the connection destination, see 5.3.2 Changing the PFM - Manager for the connection destination.

    Important

    In this procedure, only one host name can be specified. If you want to create a multiple-monitoring configuration, do not specify the host name of PFM - Manager for the connection destination during installation. After you complete installing the Performance Management programs, change PFM - Manager for the connection destination.

  10. Upon a successful installation, enter Q.

    This returns to the initial window of Hitachi Program Product Installer.

To Page Top

(6) In Linux

  1. Log on as the root user to the host where you want to install the programs, or use the su command to assume root user privileges.

  2. Stop all Performance Management services that might be running on the local host.

    The services that need to be stopped are any Performance Management services running on the physical and logical hosts. For details about how to stop services, see the chapter that explains how to start and stop Performance Management in the JP1/Performance Management User's Guide.

  3. Load the distribution media.

  4. Execute the following command to start Hitachi Program Product Installer:

    mount-directory-name/X64LIN/setup /mount-directory-name

    Hitachi Program Product Installer starts and the initial window appears.

    Note that the command to execute varies depending on the environment.

  5. From the initial window, enter I.

    A list of programs that can be installed is displayed.

  6. Select a program you wish to install.

    To select a program, move the cursor to the desired program and then select it by pressing the space key.

  7. Enter I.

    For a new installation of PFM - Base, the setting window of PFM - Manager for the connection destination appears.

    For an overwrite installation of PFM - Base, the existing settings of PFM - Manager for the connection destination are inherited and the PFM - Base programs are installed.

    Also, if you select a program other than PFM - Base, the selected program is installed.

  8. If the setting window of PFM - Manager for the connection destination appears, enter a host name of PFM - Manager for the connection destination.

    You do not have to set PFM - Manager for the connection destination during installation. You can set it later. If you do not set PFM - Manager for the connection destination during installation, the physical host name of the agent host is used. After the installation, change PFM - Manager for the connection destination. For details about changing PFM - Manager for the connection destination, see 5.3.2 Changing the PFM - Manager for the connection destination.

    Important

    In this procedure, only one host name can be specified. If you want to create a multiple-monitoring configuration, do not specify the host name of PFM - Manager for the connection destination during installation. After you complete installing the Performance Management programs, change PFM - Manager for the connection destination.

  9. Upon a successful installation, enter Q.

    This returns to the initial window of Hitachi Program Product Installer.

Note:

If the installation directory points to a symbolic link, the symbolic link will be broken. Before installation, make sure that the following installation directory is a real directory:

/opt/jp1pc/*

To Page Top

(7) Installing the PFM - Web Console program

To install and uninstall the PFM - Web Console program, use Hitachi Program Product Installer stored on the distribution media.

(a) Log in

Only the root user can install PFM - Web Console from the Hitachi Program Product Installer. Log in as the root user to the host where you want to install the program.

(b) Start the Hitachi Program Product Installer

The Hitachi Program Product Installer is stored on the distribution media. Note the following when running the Hitachi Program Product Installer:

  • The device special file and the mount directory for the distribution media differ depending on the OS, hardware configuration, and system environment. Review the relevant manuals and your operating environment prior to starting Hitachi Program Product Installer.

  • Make sure that the language type used by Hitachi Program Product Installer matches that of the terminal where it is being run.

(c) Mount the file system

Execute the following command to mount the file system:

mount -r -o mode=0544 device-special-file-name mount-directory-name

(d) Start the setup program

When you enter the following command, the setup program installs Hitachi Program Product Installer and the autostart program for the resident process onto the hard disk. Hitachi Program Product Installer then starts automatically.

mount-directory-name/X64LIN/setup mount-directory-name

The names of files and directories on the distribution media might appear differently depending on such factors as your hardware environment. Use the ls command to confirm the proper file and directory names, and enter them as they appear in the command output.

(e) Install programs

Specify the distribution media and start Hitachi Program Product Installer or the setup program. Place the distribution media for PFM - Web Console in the appropriate device drive.

Choose I from the main menu to display the following program installation window:

        PP-NO.         VR                 PP-NAME
<@>001  PP-type        version-number     JP1/PFM - Web Console
        :
        :
F) Forward B) Backward J) Down K) Up Space) Select/Unselect I) Install Q) Quit

Move the cursor to the program you want to install, and then select the program or multiple programs with the space bar. The characters <@> appear to the left of the program you selected. Once you have selected the programs you want to install, enter I again to proceed. The following message appears at the bottom of the screen:

Install PP? (y: install,  n: cancel)==>

Enter y or Y to begin installation. If you enter any other character, the installation process is canceled and control is returned to the program installation window. You can also enter Q to return to the main menu.

(f) Display a list of programs

Choose L from the main menu to display the following window that lists the programs installed on the host.

     PP-NO.    VR              Install date            PP-NAME
001  PP-type   version-number  YYYY/MM/DD hh:mm  JP1/PFM - Web Console
        :
        :
F) Forward B) Backward Q) Quit P) Print to /tmp/hitachi_PPLIST ==>
Note:

The Install date underlined above shows the time when the program was installed.

Choose P to output a list of installed programs to /tmp/hitachi_PPLIST. Choose Q to return to the main menu.

(g) Notes on installing programs using Hitachi Program Product Installer

  • The disk space required for installation is equivalent to twice the capacity of the product disk. This is to allow for data to be copied from a temporary work directory to the product directory.

  • The PFM - Web Console installation directory (/opt/jp1pcwebcon/) is fixed and cannot be changed.

  • The PFM - Manager or PFM - Base installation directory (/opt/jp1pc/) is fixed and cannot be changed.

  • Before performing an overwrite installation of PFM - Web Console, stop all PFM - Web Console services.

  • Before performing an overwrite installation of PFM - Manager or PFM - Base, stop all Performance Management services on the host.

  • If the installation fails with the message Installation failed in the status bar, collect the /etc/.hitachi/.hitachi.log and /etc/.hitachi/.install.log file and then contact the system administrator.

    Because the log file will be overwritten the next time you start Hitachi Program Product Installer, make backups as necessary.

  • When installing PFM - Web Console to a linked directory, files and directories with the same name at the link destination are overwritten.

  • If you perform an overwrite installation of PFM - Web Console, Hitachi Network Objectplaza Trace Library (HNTRLib2) will stop. This means that when PFM - Web Console is started, no data is logged in the integrated trace log. If you perform an overwrite installation, you must use the ps command to confirm that the Hitachi Network Objectplaza Trace Library (HNTRLib2) is up and running. (If the hntr2mon process is running, then HNTRLib2 is up and running.)

    If Hitachi Network Objectplaza Trace Library (HNTRLib2) is not up and running, you can use the hntr2mon command to start it. The hntr2mon command is as follows:

    hntr2mon (UNIX only)

    Format

    hntr2mon -d &

    Function

    Starts Hitachi Network Objectplaza Trace Library (HNTRLib2).

    Execution permisson

    Superuser privileges

    Installation directory

    /opt/hitachi/HNTRLib2/bin/

    Note

    As a session reader, the -d option only starts the process. It does not detach the process from the shell. To directly start Hitachi Network Objectplaza Trace Library (HNTRLib2) from Web Console, you must use C-shell.

    Usage example

    $ csh

    % /opt/hitachi/HNTRLib2/bin/hntr2mon -d &
