15.2.2 Integrated trace log
The integrated trace log is the trace information that is output by different programs into one destination file by using Hitachi Network Objectplaza Trace Library (HNTRLib2). This log information contains more detailed messages than those in the common message log.
The integrated trace log is output to the following file by default:
system-drive:\Program Files (x86)\Hitachi\HNTRLib2\spool\hntr2{1|2|3|4}.log

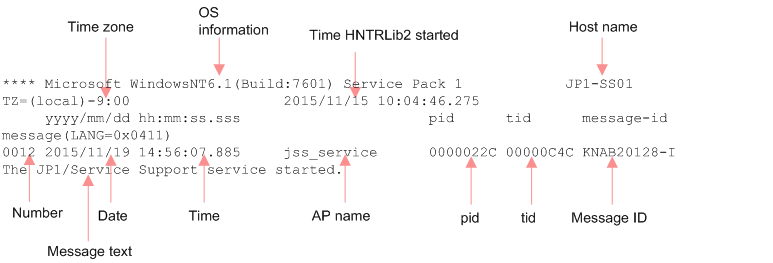

You can view the integrated trace log file by using any text editor. The following shows an example of output to an integrated trace log file.
|
|
![[Figure]](GRAPHICS/ZU140100.GIF)
Tables 15-1 and 15-2 describe the header information and output elements in the integrated trace log file.
|
Header information |
Description |
|---|---|
|
OS information |
Information about the OS on which Hitachi Network Objectplaza Trace Library (HNTRLib2) is running |
|
Host name |
The name of the host on which Network Objectplaza Trace Library (HNTRLib2) is running |
|
Time zone |
The time zone for the OS |
|
Time HNTRLib2 started |
Time that Hitachi Network Objectplaza Trace Library (HNTRLib2) started |
|
Output element |
Description |
|---|---|
|
Number (4 digits) |
The sequence number of the trace record. A number is assigned for each process for which log data is output. |
|
Date (10 bytes) |
The date the trace was collected: yyyy/mm/dd (year/month/day) |
|
Time (12 bytes) |
The local time the trace was collected: hh:mm:ss.sss (hour:minute:second:millisecond) |
|
AP name |
The name that identifies an application (application identification name). The AP name output by JP1/Service Support is jss_service. |
|
pid |
The process ID assigned by the OS |
|
tid |
The thread ID that identifies a thread |
|
Message ID |
The message ID described in the format of output messages. The message IDs in this log are used by JP1/Service Support. |
|
Message text |
The text of a message output to the integrated trace log. The message texts in this log are those output by JP1/Service Support. |
