9.10.2 Viewing Item form definition information

To view information in the Item form definition file:

1. In the Item form definition editing utility (customize an Item form) window, select the View menu and then Preview.

   For details about the procedure for displaying the Item form definition editing utility window, see 9.10.1 Procedure for customizing an Item form definition file.

   The following IT process management window appears.

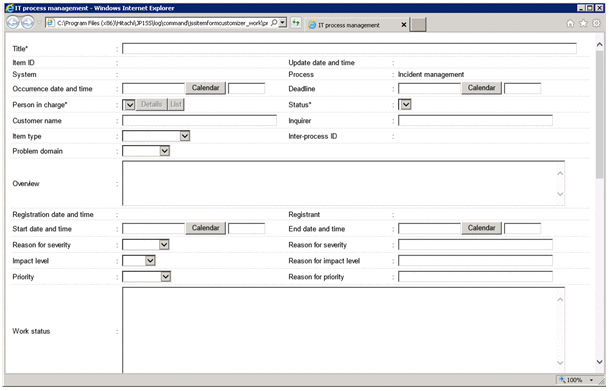

   Figure 9‒27: IT process management window (preview of Item form definition information)

   Only one IT process management window can be displayed at a time. If you display a new IT process management window, information in the already displayed IT process management window is deleted. If you want to compare information in multiple windows, before displaying a new IT process management window, save the information in the already displayed window to an HTML file. By displaying the saved file in a browser, you can compare the information.

   Terminating the jssformcustomizer command closes the IT process management window.

   You can check the following contents:

   • Position of elements

   • Element names

   • Candidate values

   • Mandatory or mandatory when closed

   Note:

   Displaying the IT process management window might display a warning message for security. In that case, allow access to the contents according to the directions of the message.
