JP1 Version 12 JP1/Service Support Configuration and Administration Guide


9.9.2 Viewing Item form information

To view Item form information:

  1. From the menu in the main window (Item list), select Option and then Item form management.

    The Item form management window appears. The following figure shows an example of display in the Item form management window.

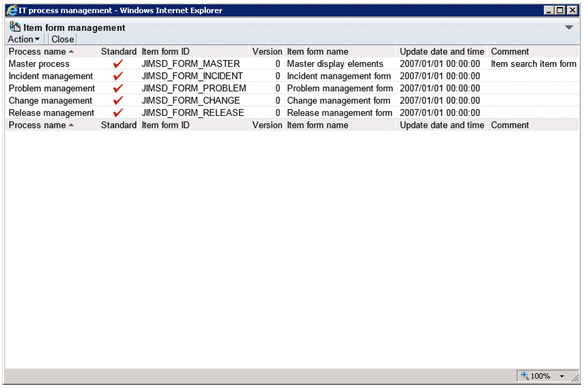

    Figure 9‒22: Item form management window

    [Figure]

  2. Select the Item form you want to view, and from the menu in the Item form management window, select Action and then Item form details.

    You can select an Item form by clicking its name or ID.

    The Item form details window appears. The following figure shows an example of display in the Item form details window.

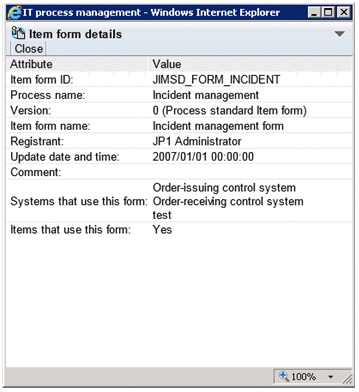

    Figure 9‒23: Item form details window

    [Figure]

Note

You can also view Item form information from a context menu by right-clicking the ID or name of the Item form you want to view, and then selecting Item form details.
