9.6.4 Viewing process work boards

This subsection describes how to view a process work board. This operation requires view permission for Items.

1. From the list of process work boards in the main window (Item list), select the process work board you want to view.

   You can select a process work board by clicking its name.

2. From the menu, select Action and then View the process work board.

   The View the process work board window appears. The View the process work board window has the Basic settings tab, the Settings - Automatic item input tab, and the Threshold setting tab. Individual tabs contain different elements for viewing. The following figure shows the View the process work board window.

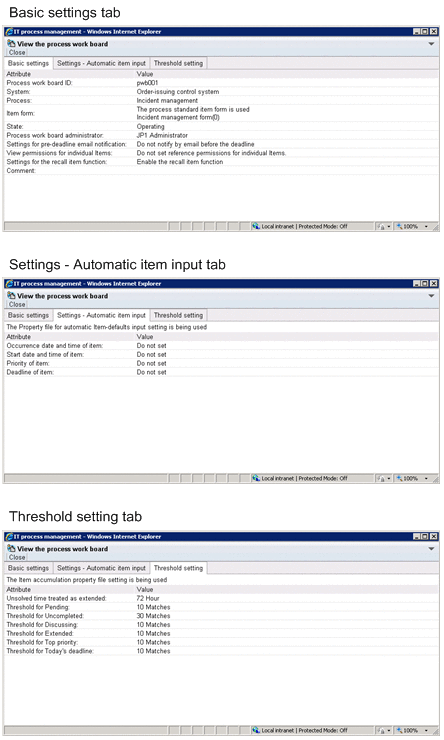

   Figure 9‒18: View the process work board window
