9.3 Monitoring tree model for the server-oriented tree

The following figures show the monitoring tree model that is generated when the server-oriented tree template is selected for generating a monitoring tree automatically.

Monitoring tree model generated when the server-oriented tree template is selected

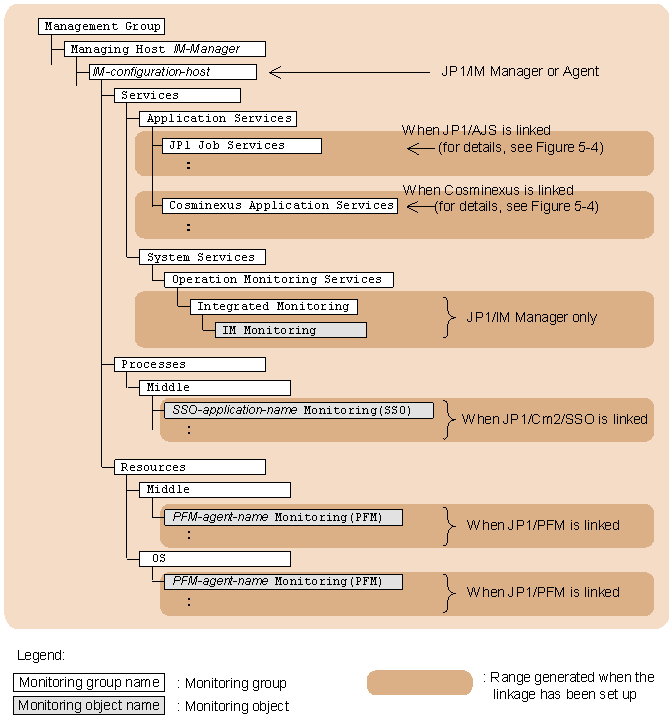

Figure 9‒3: Monitoring tree model (server-oriented tree template)

[Figure]

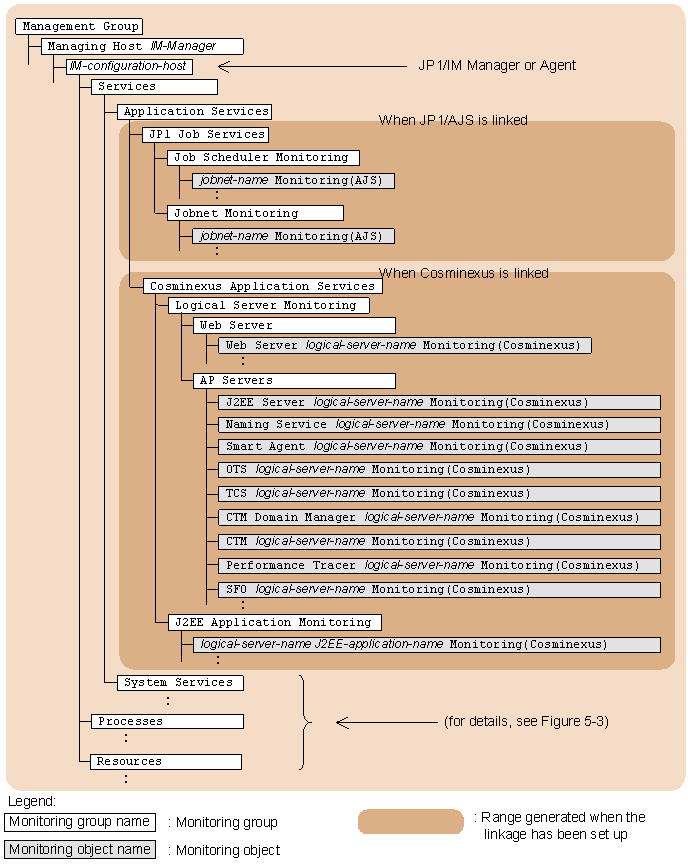

Figure 9‒4: Monitoring tree model (server-oriented tree template)

[Figure]
