9.2 Monitoring tree model for the work-oriented tree

The following figures show the monitoring tree model that is generated when the work-oriented tree template is selected for generating a monitoring tree automatically.

Monitoring tree model generated when the work-oriented tree template is selected

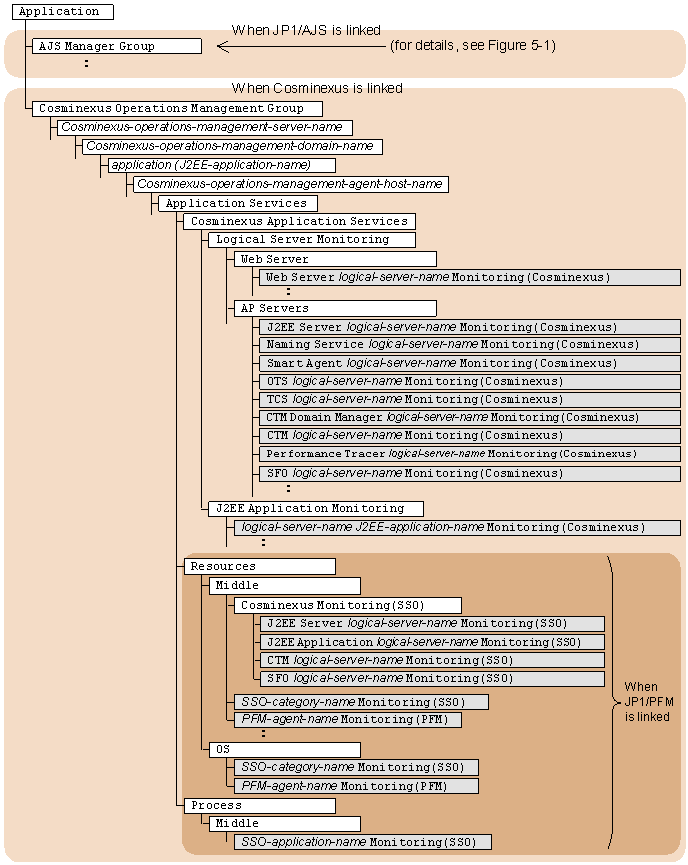

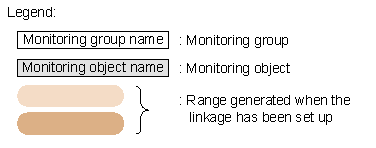

Figure 9‒1: Monitoring tree model (work-oriented tree template)

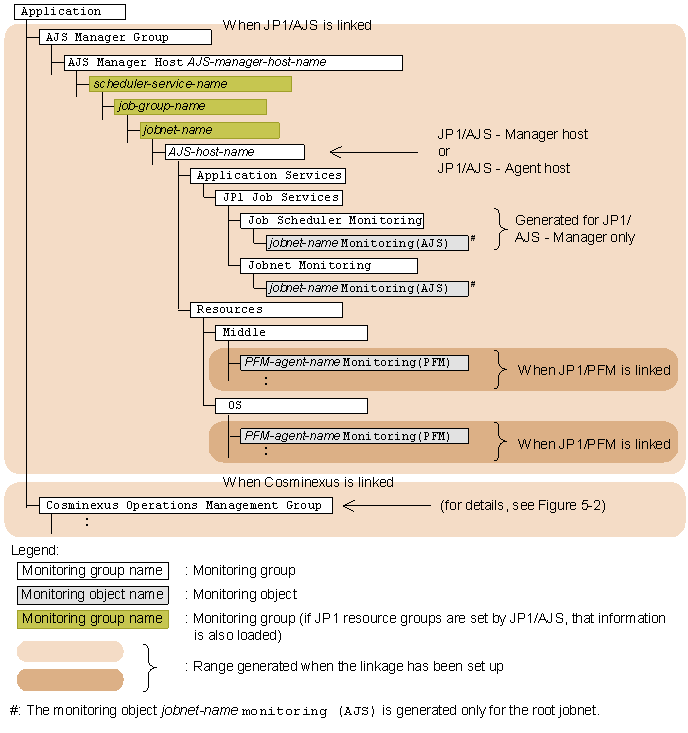

Figure 9‒2: Monitoring tree model (work-oriented tree template)
