5.5 Select Hosts window
The Select Hosts window selects hosts that the system will display as candidates for entry.
This window can be opened by using one of the following operations:
-
In the Edit Host Properties window, from the Host type drop-down list, select VMM host.
-
In the Edit Agent Configuration window, from the Edit menu, choose Add Host or Exchange Hosts.
-
In the Edit Remote Monitoring Configuration window, from the Edit menu, choose Add Host or Exchange Hosts.

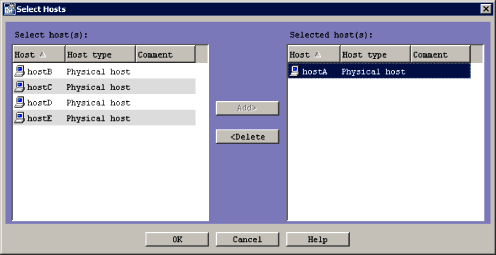

Figure 5‒16: Select Hosts window
The following describes the items displayed in the Select Hosts window.
- Select host(s):
-
Lists hosts that can be selected. Hosts that have already been selected or cannot be selected are not listed.
The following table describes the items that are displayed in the Select host(s): area.
Table 5‒16: Items displayed in the Select host(s) area Item
Displayed information
Host
The name of the host registered in the system hierarchy
Host type
The type of the host registered in the system hierarchy. Physical host, Logical host, Virtual host, or Unknown can be displayed in the Host Type column.
Comment
A comment about the host registered in the system hierarchy
- Selected host(s):
-
Lists the hosts that have already been selected.
The items displayed in the Selected host(s): area are the same as the items displayed in the Select host(s): area.
- Add
-
Moves the host selected in the Select host(s): area to the Selected host(s): area.
- Delete
-
Moves the host selected in the Selected host(s): area back to the Select host(s): area.
