4.6 Background Image Settings window

The Background Image Settings window is used to set the background image of a Visual Monitoring window or the background image of the details display area in map mode (Icon View) in the Monitoring Tree window. The following explains how to open the Background Image Settings window.

To set the background image of a Visual Monitoring window:

In the Visual Monitoring (Editing) window, the user clicks [Figure].

To set the background image of the details display area in map mode (Icon View) in the Monitoring Tree window:

The user opens the Properties window, and on the General page, clicks the Change button on the right of the Background image setting area.

Note that the user can perform this operation only for a monitoring group in the Monitoring Tree (Editing) window.

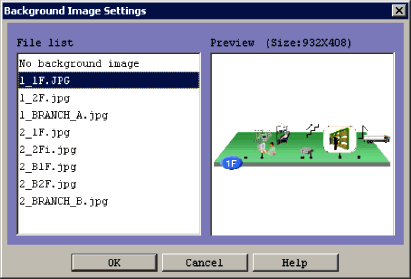

The following figure shows an example of the Background Image Settings window.

Figure 4‒6: Background Image Settings window

[Figure]

The following describes the storage location, formats, and maximum size of the images that can be selected as background images.

Location of the images:

view-path\image\map\

The maximum length of the file name is 260 bytes, which includes the path to the file storage location and the file name with its extension.

Image formats:
  • JPEG

  • GIF

  • PNG

Maximum image size:

2,048 x 2,048 pixels

The Background Image Settings window has two areas: File list and Preview. If an image file is selected in the File list area, the image and size are displayed in the Preview area. If No background image is selected in the File list area, icons are displayed on a solid white background in the Visual Monitoring window or in the details display area of the Monitoring Tree window in map mode.

The following images cannot be used for background images:
  • An image whose height or width is greater than 2,048 pixels

  • An image whose file format is not JPEG, GIF, or PNG
