3.44.8 Filter condition definition windows

The items for filtering response-waiting events are displayed in the filter condition definition window for a filter when specific conditions are satisfied. The following table describes the conditions for each filter.

Table 3‒27: Conditions for filtering response-waiting events

Filter	Condition definition window	Condition
Event receiver filter	Settings for Event Receiver Filter window	The response-waiting event management function is enabled.
Severe event filter	Severe Event Definitions window	The response-waiting event management function is enabled.
View filter	Settings for View Filter window	The response-waiting event management function is enabled. The setting that allows users to respond to and work with response-waiting events is enabled.

The following figure shows the items displayed in the filter condition definition windows when the necessary conditions are satisfied.

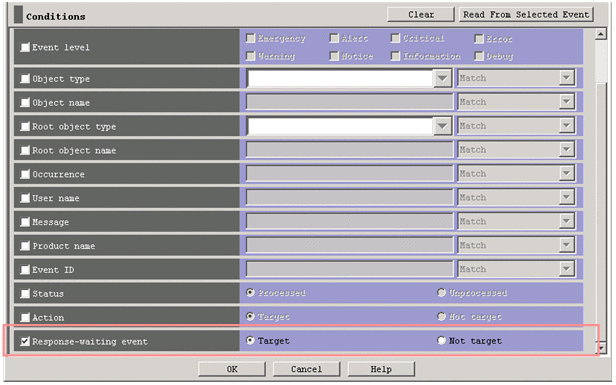

Figure 3‒88: Items displayed in the filter condition definition windows

Response-waiting event

The options in this area can be used to show or hide response-waiting events.
