3.44.7 Event Search Conditions window

The Event Search Conditions window is used to set JP1 event search conditions. The following figure shows this window.

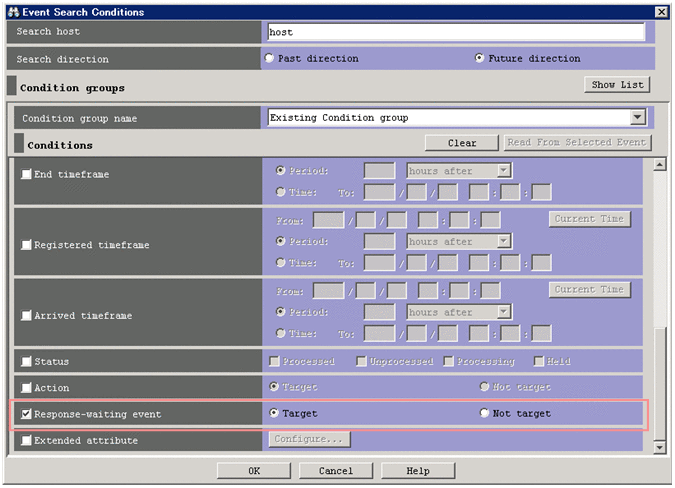

Figure 3‒87: Event Search Conditions window

The following describes the items that are displayed when the response-waiting event management function and the setting that allows users to respond to and work with response-waiting events are enabled.

Response-waiting event

The options in this area can be used to determine whether to include response-waiting events in search targets or exclude response-waiting events from search targets.

Important

If you start the [Event Search Conditions] window by using Ctrl + F key soon after you close the [Event Search Conditions] window, JP1/IM - View may freeze, or may not be rendered. If you close the [Event Search Conditions] window, wait for a few seconds before starting the [Event Search Conditions] window. If the [Event Console] window of the WWW page version freezes, close "JP1 Central Console" from the [Applications] tab or the [Processes] tab of Task Manager to restart it.
