3.38 List of Action Results window

The List of Action Results window lists the execution results of the automated actions set in the JP1/IM - Manager (JP1/IM - Central Console) to which the user is currently logged in. This window is displayed when the user chooses View from the menu bar of the Event Console window and then List of Action Results.

The following figure shows an example of the List of Action Results window.

Figure 3‒73: List of Action Results window

When linkage with JP1/IM - Rule Operation is enabled, the Type column is added to the Log list box and the Rule Log Details button is displayed, as shown in the following figure.

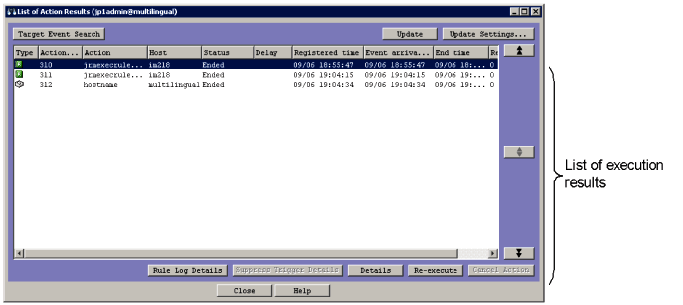

Figure 3‒74: List of Action Results window (when linkage with JP1/IM - Rule Operation is enabled)

The following describes the items displayed in the List of Action Results window.

Target Event Search

Clicking this button retrieves the event that triggered execution of the action selected in the list of execution results.

If the user selects an action in the list and clicks this button, the event that triggered execution of the action is displayed on the Search Events page in the Event Console window.

This button is disabled in the following cases:

When multiple actions are selected
When no action is selected

Update

Clicking this button refreshes the execution results of automated actions. If the items that are displayed have been changed by using the [Figure] or button, the information in the new position is displayed.

Update Settings

Clicking this button displays the Conditions for Updating List of Action Results window, where the conditions for displaying the execution results of automated actions can be set.

List of execution results

This area lists the execution results of the automated actions set in the JP1/IM - Manager (JP1/IM - Central Console) to which the user is currently logged in. The execution result of each action is displayed on one line.

The maximum number of action results displayed here is set in the Conditions for Updating List of Action Results window.

When multiple items are selected in the list, the only operation the user can perform is Cancel Action. If the user double-clicks a single item, the Action Log Details window appears.

Clicking this button displays the execution results of previous actions. The number of items that can be displayed is set in the Conditions for Updating List of Action Results window. After the items that are displayed have been changed by using the [Figure] button, if the user clicks the Update button (including automatic update), only the information for the currently displayed items is refreshed.

Clicking this button refreshes the execution results that are displayed in the list. When the [Figure] button is clicked, the display position reverts to what it was before the or button was used.

Note that this button is disabled if the items that are displayed have not been changed by using the [Figure] or button.

Clicking this button displays the execution results of subsequent actions. The number of items that can be displayed is set in the Conditions for Updating List of Action Results window. After the displayed items have been changed by using the [Figure] button, if the user clicks the Update button (including automatic update), only the information for the currently displayed items is refreshed.

Suppress Trigger Details

This button can be used when Deterrent is displayed as the status or when -RD or -RUD is displayed as the status suffix in the Status column of the action selected in the Log list box. If this button is clicked in these cases, details of the action that triggered the start of suppression are displayed.

The following describes the status suffixes -RD, -RUD, and -D displayed in the Status column:

-RD

This suffix is displayed when a value other than OFF is specified for the -r option of the jcoimdef command and the command is re-executed for the action suppressed during Automatic Action Service startup. This suffix is also displayed when the action log is output to the action re-execution file (example: Ended-RD)
-RUD

This suffix is displayed when the command of a suppressed action is re-executed by clicking Re-execute in the Action Log window or List of Action Results window (example: Ended-RUD).
-D

This suffix is displayed when the status of the command for a suppressed action is Fail. -D is displayed after Fail (example: Fail-D).

When the user selects the action in the Log list box and clicks Suppress Trigger Details, the Action Log Details window opens. This window can be used to check the detailed execution result of the action.

The detailed execution result of an action can be displayed only if Deterrent is displayed as the status or if -RD or -RUD is displayed as the status suffix.

The Suppress Trigger Details button is disabled in the following cases:

When the user selects an action whose status is not Deterrent or whose status suffix is neither -RD nor -RUD
When the user selects multiple actions

Details

Clicking this button displays the detailed execution result of the action selected in the Log list box. The Action Log Details window opens, displaying the detailed execution result.

Re-execute

Clicking this button requests re-execution of an action displayed in the Log list box. The user can use this button to re-execute an action whose status is Cancel, Kill, Error, Deterrent, or Ended.

To use this button, the user must have JP1_Console_Admin permission or JP1_Console_Operator permission.

To request re-execution of an action, the user selects an action in the Log list box and then clicks the Re-execute button. When the Re-execute button is clicked, a dialog box asking whether the user wants to re-execute the action appears. Clicking the OK button in the dialog box completes the request to re-execute the selected automated action.

Hitachi recommends that the user click the Update button after submission of the request to check the status of the action.

The Re-execute button is disabled in the following cases:

When the user selects an action whose status is not Cancel, Kill, Error, Deterrent, or Ended
When the user selects multiple actions

Cancel Action

Clicking this button cancels execution of an action selected in the list of execution results.

The user can use this button to cancel execution of an action whose status is Wait, Queue, or Running. Note that cancellation fails if the version of JP1/Base on the host on which the action is to be executed is 07-00 or earlier.

To use this button, the user must have JP1_Console_Admin permission or JP1_Console_Operator permission.

To request cancellation, the user selects an action in the Log list box and then clicks the Cancel Action button. When the Cancel Action button is clicked, a dialog box asking whether the user wants to cancel execution of the action appears. Clicking the OK button in the dialog box completes the request to cancel execution of the selected automated action. Note that canceling the execution of an action whose status is Wait, Queue, or Running cannot be requested.

Hitachi recommends that the user click the Update button after submission of the request to check the status of the action.

The Cancel Action button is disabled if the status of the selected action is not Wait, Queue, or Running.

Rule Log Details

Clicking this button allows the user to view the execution result of a rule for which the rule startup request was sent to JP1/IM - Rule Operation. When this button is clicked, the Rule Log Details window of JP1/IM - Rule Operation opens.

This button is displayed only if linkage with JP1/IM - Rule Operation has been set up.

For details about setting up linkage with JP1/IM - Rule Operation, see 1010.3.1 Settings for enabling the JP1/IM - Rule Operation linkage function in the JP1/Integrated Management 2 - Manager Configuration Guide.

The Rule Log Details button is disabled in the following cases:

When the type of the selected action is not Rule
When the return code of the selected action is not 0
When the user selects multiple actions

After an action has been selected and re-executed, a refresh of the List of Action Results window cancels the selection.

If the size of the action information file containing the information about executed actions exceeds the maximum, the oldest information is overwritten with new information. When old information is overwritten, action execution result information that is displayed in the List of Action Results window might disappear. If the disappearance of information occurs so frequently that operation is hindered, consider increasing the maximum size of the action information file. For details about estimating and setting the maximum size of the action information file, see Automated action environment definition file (action.conf.update) in 2. Definition Files in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.
