3.37 Action Log Details window

The Action Log Details window displays the detailed execution result of an automated action.

This window is displayed when the user selects an action in the Log area of the Action Log window and then clicks Details or when the user double-clicks an action selected in the Log area of the Action Log window.

The following figure shows an example of the Action Log Details window.

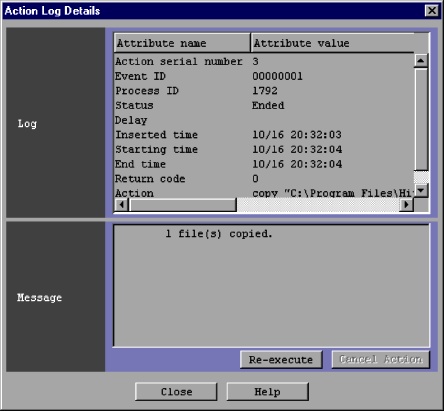

Figure 3‒71: Action Log Details window

When linkage with JP1/IM - Rule Operation is enabled, the Rule Log Details button is displayed in the Action Log Details window as shown in the following figure.

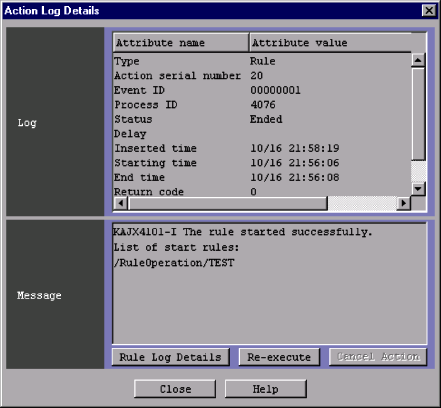

Figure 3‒72: Action Log Details window (when linkage with JP1/IM - Rule Operation is enabled)

The following describes the items displayed in the Action Log Details window.

Log

This area displays the execution result of an automated action. The following table describes the items displayed in this area.

Table 3‒24: Items displayed in the Log area of the Action Log Details window

Item	Description
Type	Type of action. If a command was executed by the action, Command is displayed as the attribute value. If a rule startup request was sent to JP1/IM - Rule Operation by the action, Rule is displayed as the attribute value. This item is displayed only if linkage with JP1/IM - Rule Operation is enabled.
Action serial number	Number identifying the action
Event ID	ID of the received JP1 event
Serial number	Serial number of the received JP1 event in the event database. This item is displayed only if the Action Log Details window was opened from the List of Action Results window.
Registered time	Time the received JP1 event was registered. This item is displayed only if the Action Log Details window was opened from the List of Action Results window.
Event arrival time	Time the received JP1 event arrived at the local server. This item is displayed only if the Action Log Details window was opened from the List of Action Results window.
Process ID	Process ID of the executed action. If action information has been written to the action re-execution file because a failover occurred, OUTPUT is displayed.
Status	One of the following character strings indicating an action execution status: Running, Ended, Unknown (the execution result of the command is unknown), Fail (an error occurred before the command was executed), Error (an error occurred after the command was executed), Queue (the command is waiting for the previous command to terminate), Send, Wait, Deterrent, Cancel, or Kill. If an action has been re-executed, or the result has been output to the action re-execution file, one of the following suffixes is also displayed: -R This suffix is displayed if a value other than OFF was specified for the -r option of the jcoimdef command and the command was re-executed during Automatic Action Service startup. This suffix is also displayed if the action log was output to the action re-execution file (example: Ended-R). -RU This suffix is displayed if the command was re-executed by clicking Re-execute in the Action Log window or List of Action Results window (example: Ended-RU). -RD This suffix is displayed if a value other than OFF was specified for the -r option of the jcoimdef command and the command was re-executed for an action suppressed during Automatic Action Service startup. This suffix is also displayed if the action log was output to the action re-execution file (example: Ended-RD). -RUD This suffix is displayed if the command of a suppressed action was re-executed by clicking Re-execute in the Action Log window or List of Action Results window (example: Ended-RUD). -D This suffix is displayed if the status of a suppressed action was Fail. -D is displayed after Fail (example: Fail-D).
Delay	Indication of whether the action has been delayed. If the action has been delayed, Delay is displayed.
Inserted time	The time that the action was sent to the host on which the action was to be executed
Starting time	The time that the notification reporting the start of execution was received from the host on which the action was being executed
End time	The time that the notification reporting the end of execution was received from the host on which the action was executed
Return code	Return code for the executed action
Action	Command that was executed as the action
Host	Host on which the action was executed

Message

This area displays the message that was output when the action was executed.

Re-execute

Clicking this button requests re-execution of the action for which the details are displayed.

The user can use this button to re-execute an action whose status is Cancel, Kill, Error, Deterrent, or Ended. To use this button, the user must have JP1_Console_Admin permission or JP1_Console_Operator permission.

When the Re-execute button is clicked, a dialog box asking whether the user wants to re-execute the action appears. Clicking the OK button in the dialog box completes the request to re-execute the selected automated action.

Hitachi recommends that the user check the status of the action after submission of the request by closing this window to redisplay the Action Log window or List of Action Results window, and then clicking the Update button.

Note that the Re-execute button in the Action Log Details window is disabled if the status of the action selected in the Action Log window or List of Action Results window was not Cancel, Kill, Error, Deterrent, or Ended.

Cancel Action

Clicking this button cancels execution of the action for which the details are displayed.

The user can use this button to cancel execution of an action whose status is Wait, Queue, or Running. Note that cancellation fails if the version of JP1/Base on the host on which the action is to be executed is 07-00 or earlier.

To use this button, the user must have JP1_Console_Admin permission or JP1_Console_Operator permission.

When Cancel Action is clicked, a dialog box asking whether the user wants to cancel execution of the action appears. Clicking the OK button in the dialog box completes the request to cancel execution of the automated action.

Hitachi recommends that the user check the status of the action after submission of the request by closing this window to redisplay the Action Log window or List of Action Results window, and then clicking the Update button.

The Cancel Action button is disabled if the status of the action is not Wait, Queue, or Running.

Rule Log Details

Clicking this button allows the user to view the execution result of a rule for which the rule startup request was sent to JP1/IM - Rule Operation. When this button is clicked, the Rule Log Details window of JP1/IM - Rule Operation opens.

This button is displayed only if linkage with JP1/IM - Rule Operation has been set up.

For details about setting up linkage with JP1/IM - Rule Operation, see 1010.3.1 Settings for enabling the JP1/IM - Rule Operation linkage function in the JP1/Integrated Management 2 - Manager Configuration Guide.

The Rule Log Details button is disabled in the following cases:

• When the selected action type is not Rule

• When the return code of the selected action is not 0
