3.9 Related Events (Correlation) window

The Related Events (Correlation) window lists the correlation source events for a correlation event when the correlation event generation function is used.

The Related Events (Correlation) window opens in the following cases:

When the user selects a correlation event in the Event Console window (Monitor Events, Severe Events, or Search Events page), chooses View from the menu bar, and then chooses Display Related Event List
When the user right-clicks a correlation event in the Event Console window (Monitor Events, Severe Events, or Search Events page), and selects Display Related Event List from the pop-up menu
When the user uses the following procedure:
- In the Event Console window (Monitor Events, Severe Events, or Search Events page), the user selects a correlation event into which some events have been consolidated.
- From the View menu, the user chooses Display Related Event List to display the Related Events (Summary) window.
- In the Related Events (Summary) window, the user right-clicks a correlation event and selects Display Related Event List from the pop-up menu.

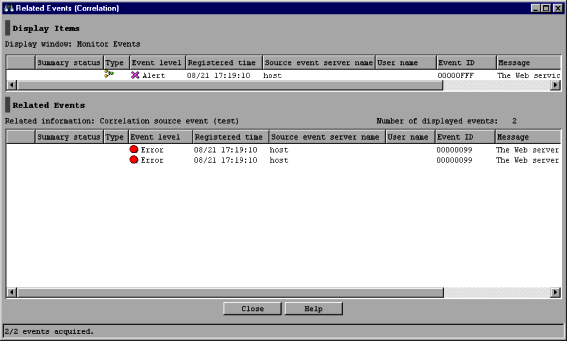

The following figure shows an example of the Related Events (Correlation) window.

Figure 3‒19: Related Events (Correlation) window

Note: Some of the items displayed in the Related Events (Correlation) window change if linkage with BJEX or JP1/AS is enabled. For information about the contents of the Related Events (Correlation) window when linkage with BJEX or JP1/AS is enabled, see 3.44.5 Related Events windows.

The following describes the items displayed in the Related Events (Correlation) window:

Display Items

This area displays the correlation event selected in the Event Console window (Monitor Events, Severe Events, or Search Events page) or in the Related Events (Summary) window. The items displayed in the Display Items area are the same as the items displayed in the Event Console window. If the display items in the Preferences window are changed, the items displayed in the Display Items area are also changed.

For the correlation event displayed in the Display Items area, as in the Event Console window, the user can display detailed information or change the status. If the event status is changed, the corresponding status icon is displayed in the leftmost column.

If the correlation event displayed in the Display Items area was selected on the Search Events page, the event might exist on a host different from the host on which the user has logged in with JP1/IM - View. If the displayed correlation event exists on a different host, the user cannot perform the following operation:

Changing the event status
Registering incidents in JP1/Service Support

To change the event status to Delete, the user must open the Related Events (Correlation) window from the Severe Events page, and check the information displayed after the Display window label to confirm that either of the following is displayed:

Severe Events
Severe Events - Related Events (Summary)

When the correlation event is deleted, the background color changes to gray.

Information is displayed in the Display Items area as follows:

The Coloring settings in the Preferences window are not applied to the Display Items area. The background colors defined for severity levels (Emergency, Alert, Critical, Error, and Warning) are not added.
If the display items in the Preferences window are changed, the items displayed in the Related Events list are also changed.

Display window

The name of the page from which the Related Events (Correlation) window was opened is displayed in the following format:

Display window: page-name

The following table lists the page names that can be displayed after Display window.

Table 3‒11: Page names that can be displayed after "Display window"
No.	Page name	Description
1	Monitor Events	Displayed when the Related Events (Correlation) window is opened from the Monitor Events page of the Event Console window.
2	Severe Events	Displayed when the Related Events (Correlation) window is opened from the Severe Events page of the Event Console window.
3	Search Events	Displayed when the Related Events (Correlation) window is opened from the Search Events page of the Event Console window.
4	`page-name` - Related Events (Summary)	Displayed when the Related Events (Correlation) window is opened from the Related Events list after the Related Events (Summary) window has been opened from a correlation event into which events are consolidated in the Event Console window. In `page-name`, either Monitor Events or Severe Events is displayed.

Related Events list

The Related Events list displays the correlation source events for the correlation event displayed in the Display Items area. The items displayed in the Related Events list are the same as the items displayed in the Event Console window. If the display items in the Preferences window are changed, the items displayed in the Related Events list are also changed.

For the correlation source events displayed in the Related Events list, as in the Event Console window, the user can display detailed information or change the status. If the event status is changed, the corresponding status icon is displayed in the leftmost column.

If the host that issued the correlation event is different from the host on which the user has logged in with JP1/IM - View, the correlation source events are acquired from the host that issued the correlation event.

Changing the event status
Registering incidents in JP1/Service Support

To change the event status to Delete, the user must open the Related Events (Correlation) window from the Severe Events page, and check the information displayed after the Display window: label to confirm that either of the following is displayed:

Severe Events
Severe Events - Related Events (Summary)

When the correlation source events are deleted, their background color changes to gray.

Information is displayed in the Display Items area as follows:

The Coloring settings in the Preferences window are not applied to the Display Items area. The background colors defined for severity levels (Emergency, Alert, Critical, Error, and Warning) are not added.
If the display items in the Preferences window are changed, the items displayed in the Related Events list are also changed.
A change in the status of the correlation event displayed in the Display Items area is not applied to any correlation source event displayed in the Related Events list. Likewise, a change in the status of a correlation source event displayed in the Related Events list is not applied to the correlation event displayed in the Display Items area. This is because a correlation event and its correlation source events indicate different phenomena.
The user can change the correlation event displayed in the Display Items area by selecting a new correlation event in the Event Console window, choosing View from the menu bar, and then choosing Display Related Event List.
In the Related Events (Correlation) window opened from the Related Events (Summary) window, if a consolidation event displayed in the Related Events (Summary) window is changed, the Related Events (Correlation) window closes automatically.
If the status of an event displayed in the Related Events (Correlation) window is changed in another window, the change is not applied to the Related Events (Correlation) window. The user can display the latest information by closing and re-opening the Related Events (Correlation) window.

When correlation source events cannot be displayed in the Related Events list

The following dummy events are displayed:

Dummy event for the message KAVB0352-E

This message appears when the correlation source events cannot be acquired because of an exception occurring in JP1/IM - Manager or JP1/Base
Dummy event for the message KAVB0341-W

This message appears when the event database does not contain the correlation source events.
Dummy event for the message KAVB0342-W

This message appears when the correlation source events are blocked by the event receiver filters.

Related information

Information about the correlation source events displayed in the Related Events (Correlation) window is displayed after this label. In Related Events (Correlation) window, Correlation source event (generation-condition-name) is displayed.

Number of displayed events

The total number of correlation source events is displayed after this label.

{0}/{1} events acquired

The progress of acquiring the correlation source events is displayed. {0} indicates the number of acquired events, and {1} indicates the total number of the correlation source events. The value {0} is incremented each time an event is added to the Related Events list.

If acquisition of correlation source events stops because of an error, the following message is displayed:

Acquisition of related events stopped.
