3.8 Related Events (Summary) window

When suppression of monitoring of repeated events or consolidated display of repeated events is enabled, the Related Events (Summary) window lists the repeated events in the consolidation event.

The Related Events (Summary) window is displayed in either of the following cases:

The user selects a consolidation event in the Event Console window (Monitor Events or Severe Events page), and selects View then Display Related Event List from the menu bar.
The user right-clicks a consolidation event in the Event Console window (Monitor Events or Severe Events page) and chooses Display Related Event List from the pop-up menu.

Note that the Related Events (Summary) window is displayed only when consolidation events exist.

The following figure shows an example of the Related Events (Summary) window.

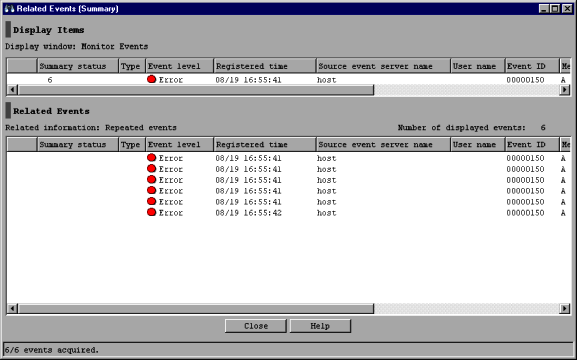

Figure 3‒17: Related Events (Summary) window

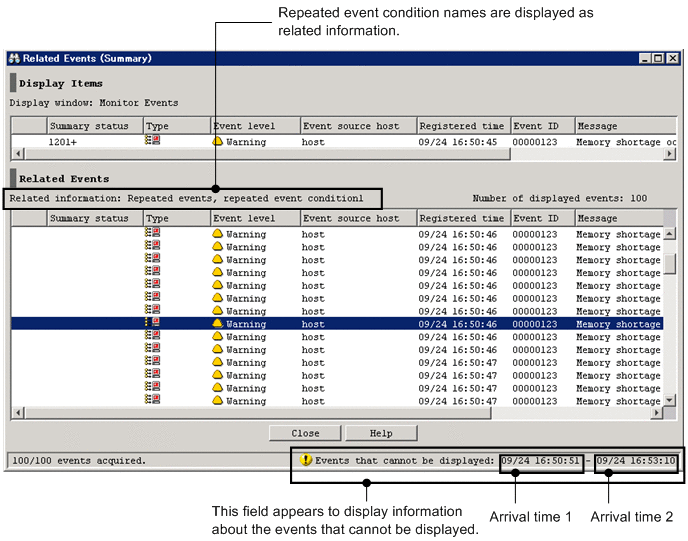

Figure 3‒18: Related Events (Summary) window when suppression of monitoring of repeated events is enabled

Note: Some of the items displayed in the Related Events (Summary) window change if linkage with BJEX or JP1/AS is enabled. For information about the contents of the Related Events (Summary) window when linkage with BJEX or JP1/AS is enabled, see 3.44.5 Related Events windows.

The following describes the items displayed in the Related Events (Summary) window:

Display Items

This area displays the consolidation event selected in the Event Console window (Monitor Events or Severe Events page). The items displayed in Display Items are the same as the items displayed in the Event Console window when the suppression of monitoring of repeated events or consolidated display of repeated events is enabled. As in the Event Console window, the user can change the status of the consolidation event. When the Related Events (Summary) window has been opened from the Severe Events page, the user can delete the consolidation event.

Information is displayed in the Display Items area as follows:

If the event status is changed, the corresponding status icon is displayed in the leftmost column. If suppression of monitoring of repeated events is enabled, the status change applies to the oldest 100 repeated events displayed in the Related Events list (response status icons are also displayed). The status change is not applied to the 101st and subsequent repeated events.

If consolidated display of repeated events is enabled, the status change is applied to all repeated events (response status icons are also displayed).
If the status of the consolidation start event displayed in the Related Events list is changed and the corresponding status icon is displayed, the status icon is also displayed in the leftmost column of the Display Items area.
When the repeated event monitoring suppression function is enabled, an exclamation mark (!) is displayed in the leftmost column of the Display Items area if the oldest 100 repeated events do not all have the same status. If these events have the same status, no exclamation mark (!) is displayed.

When consolidated display of repeated events is enabled, an exclamation mark (!) is displayed in the leftmost column of the Display Items area if repeated events do not all have the same status.
If the consolidation event is deleted, Del is displayed as the consolidation status in the Display Items area, and the displayed items are dimmed. In addition, all the repeated events displayed in the Related Events area are deleted.

If the repeated event monitoring suppression function is enabled, the oldest 100 repeated events displayed in the Related Events list are deleted. Even if repeated events that follow the 100th repeated event are deleted, the number of consolidated repeated events that are displayed in Display Items is not reduced.

If consolidated display of repeated events is enabled, all repeated events displayed in the Related Events list are deleted.
If the consolidation start event displayed in the Related Events list is deleted, Del is displayed as the consolidation status of the consolidation event displayed in the Display Items area, and the displayed items are dimmed.
If the display items in the Preferences window are changed, the items displayed in the Display Items area are also changed.

Display window

The name of the page from which the Related Events (Summary) window was opened is displayed in the following format:

Display window: page-name

The following table lists the page names that can be displayed after Display window.

Table 3‒10: Page names that can be displayed after "Display window"
No.	Page name	Description
1	Monitor Events	Displayed when the Related Events (Summary) window is opened from the Monitor Events page of the Event Console window.
2	Severe Events	Displayed when the Related Events (Summary) window is opened from the Severe Events page of the Event Console window.

Related Events list

The Related Events list displays the consolidation start event and the repeated events for the consolidation event selected in the Event Console window (Monitor Events or Severe Events page). The items displayed in the Related Events list are the same as the items displayed in the Event Console window when suppression of monitoring of repeated events or consolidated display of repeated events is enabled. However, nothing is displayed in the Summary Status column. The user can change the status of the repeated events in the same way as in the Event Console window.

Note that the Related Events list only shows the 100 oldest repeated events.

If the Related Events (Summary) window has been opened from the Severe Events page, the user can delete the consolidation start event and the repeated events for the consolidation event.

Information is displayed in the Related Events list as follows:

If the event status is changed, the corresponding status icon is displayed in the leftmost column.
If selected repeated events are deleted, they are not displayed in the Related Events list.
The Coloring settings in the Preferences window are not applied to the Related Events list. The background colors defined for severity levels (Emergency, Alert, Critical, Error, and Warning) are not added.
If the display items in the Preferences window are changed, the items displayed in the Related Events list are also changed.
The user can refresh the information displayed in the Related Events (Summary) window by closing and re-opening the window.
The user can change the consolidation event displayed in the Display Items area by selecting a new consolidation event in the Event Console window, choosing View from the menu bar, and then choosing Display Related Event List.
If the status of an event displayed in the Related Events (Summary) window is changed in another window, the change is not applied to the Related Events (Summary) window. The user can display the latest information by closing and re-opening the Related Events (Summary) window.

When the consolidation start event or repeated events cannot be displayed

The following dummy events (events that are not registered in the event database) are displayed dimmed:

Dummy event for the message KAVB0352-E (when the consolidation start event or repeated events cannot be acquired because of an exception occurring in JP1/IM - Manager or JP1/Base)
Dummy event for the message KAVB0341-W (when the event database does not contain the consolidation start event or repeated events)
Dummy event for the message KAVB0342-W (when the consolidation start event or repeated events are blocked by the event receiver filters)

Related information

Information about the consolidation start event and repeated events displayed in the Related Events (Summary) window is displayed after this label. In the Related Events (Summary) window, Repeated events is displayed.

Number of displayed events

The total number of the consolidation start event and repeated events is displayed after this label.

{0}/{1} events acquired

The progress of acquiring the consolidation start event and repeated events is displayed. {0} indicates the number of acquired events (including the consolidation start event), and {1} indicates the total number of the consolidation start event and repeated events. The value {0} is incremented each time an event is added to the Related Events list.

If the acquisition of the consolidation start event and repeated events stops because of an error, the following message is displayed:

Acquisition of related events stopped.

Events that cannot be displayed:

If 101 or more repeated events have been consolidated, the 101st and subsequent repeated events cannot be displayed in the Related Events list. For the repeated events that cannot be displayed, the arrival time of the 101st event and the arrival time of the last event are displayed. If 100 or fewer repeated events have been consolidated, all of the events are displayed in the Related Events list, and the Events that cannot be displayed area does not appear.

To view repeated events after the 100th repeated event, use a time as a search condition to search for repeated events that arrived within the two times displayed in the Events that cannot be displayed area.

For details about event searches, see 6.8 Searching for JP1 events in the JP1/Integrated Management 2 - Manager Administration Guide.

arrival-time-1: The time that the 101st repeated event arrived. The value is displayed in MM/DD hh:mm:ss format.
arrival-time-2: The time that the last repeated event arrived. The value is displayed in MM/DD hh:mm:ss format.
