2.1 Overview of the Integrated Operation Viewer window

When a user logs in to JP1/IM - Manager (Intelligent Integrated Management Base), the Integrated Operation Viewer window appears.

The Integrated Operation Viewer window consists of two areas: the Operating status area and the Details area. You can switch the display format of the Operating status area between the sunburst and tree chart formats. In the Details area, you can change the tab to see the information of the IM management node selected in the Operating status area.

Important

Operation of the Integrated Operation Viewer window can not be done with the keyboard.

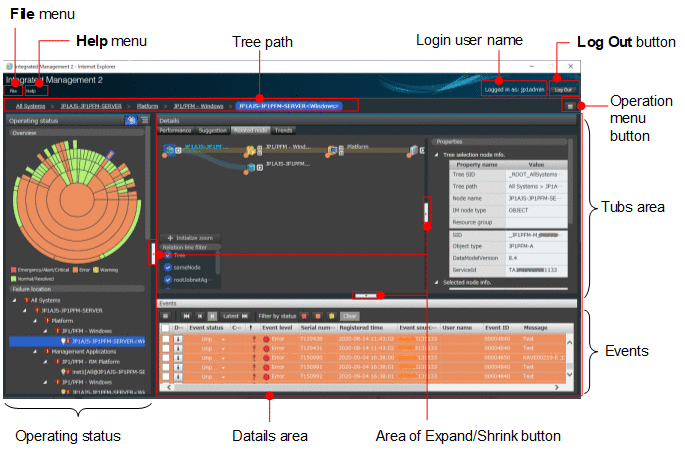

The figures below show examples of the Integrated Operation Viewer window.

Figure 2‒1: Operating status area in Integrated Operation Viewer Window

The following describes the items displayed in the window:

File menu

Displays Logout. Clicking it logs you out from the Integrated Operation Viewer window and then displays the Login window.

Help menu

Displays the following menu items:

• Online Manual

  Displays the online manual. With the default settings of the integrated operation viewer at the time of installation, clicking the Help button does not open the manual. For details about how to set up to display the manual in Windows or UNIX, see 1.20 Saving manuals to a computer (for Windows) or 2.18 Saving manuals to a computer (for UNIX) in the JP1/Integrated Management 2 - Manager Configuration Guide, respectively.

• About

  Displays the version of the integrated operation viewer.

Login user name

Displays the name of the user currently logged in the Integrated Operation Viewer window.

Log Out button

Used to log out from the Integrated Operation Viewer window and display the Login window.

Tree path

Displays the tree path to the hierarchy selected in the Operating status area. At login, All Systems is displayed.

When you click a hierarchy name link, the window changes to show the information of the selected hierarchy.

If the area is not enough to show a tree path, you see the button on the left edge and the button on the right edge, which allow you to scroll the tree path. Click either of the buttons to scroll the path to the left or right.

Operation menu button

Shows the following operation menu items:

• Copy tree URL

• Copy tree SID

• Copy tree path

These items copy the information of the selected IM management node to the clipboard.

Important

If you share or refer to the window in which you selected the IM management node, use the URL copied through Copy tree URL.

Details area of Expand/Shrink button

Click this button if you want to display only the related information in the Details area. To display the Events area, click this button again.

Operating status area of Expand/Shrink button

Click this button if close the Operating status area. To display the Operating status area, click this button again.

Operating status area

By default, this area is displayed in the sunburst chart format. You can switch the display format using icons. For details, see 2.2 Operating status area.

Details area

Displays the information of component selected in the Operating status area.

Tabs area

The Tabs area shows the information related to the component selected in the Operating status area on a tab basis. For details about each tab, see 2.3.1 Tabs area.

Events area

Lists the JP1 events occurring in the components selected in the sunburst chart, the tree chart, or the Job flow or Related node tab.

For details, see 2.3.2 Events area.

Expand/Shrink button

Click this button if you want to close the area. To show the area, click it again. Drag it if you want to change the width of the area.
