9.2.2 Example 2 (non-cluster operation with command execution)

In this example, although cluster operation is not employed, the manager is connected to two LANs that cannot be mutually routed, one of the LANs is used to connect from JP1/IM - View to the manager, and the other LAN is used to execute commands at the other host.

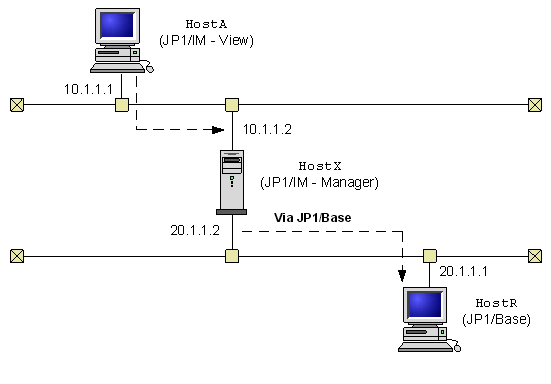

Figure 9‒2: Command execution in a multi-LAN environment (non-cluster operation)

The following tables show the settings for each host.

Table 9‒3: Settings for HostX (JP1/IM - Manager)

Host name	Binding method#	jp1host setting#
HostX	send ANY, receive ANY	--
	send ANY, receive IP	10.1.1.2, 20.1.1.2

You can achieve normal operation without having to change the JP1/Base communication settings (when cluster operation is not employed, the ANY binding methods can be used for both send and receive operations).

Table 9‒4: Settings for HostA (JP1/IM - View)

Host name	Host to connect	Other conditions
HostA	HostX	Conversion from host name HostX to 10.1.1.2 must be possible.
