9.2.1 Example 1 (non-cluster operation with JP1/IM - View connection)

In this example, although cluster operation is not employed, the manager is connected to two LANs that cannot be mutually routed, and JP1/IM - View is connected from each LAN.

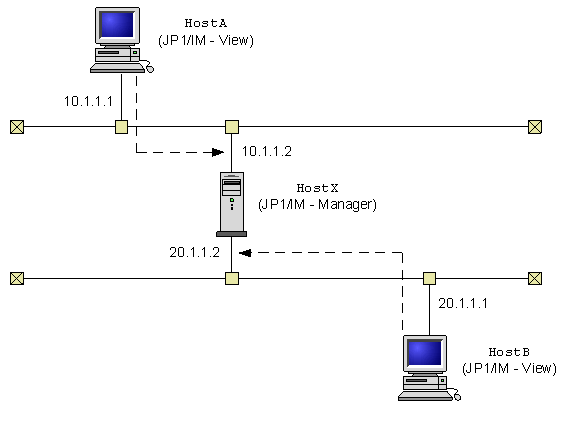

Figure 9‒1: Connecting JP1/IM - View in a multi-LAN environment (non-cluster operation)

The following tables show the settings for each host.

Table 9‒1: Settings for HostX (JP1/IM - Manager)
Host name	Binding method^#	jp1host setting^#
`HostX`	send ANY, receive ANY	--
`HostX`	send ANY, receive IP	10.1.1.2, 20.1.1.2

Legend:: --: Setting is not required

#: Can be connected with either settings.

You can achieve normal operation without having to change the JP1/Base communication settings (when cluster operation is not employed, the ANY binding methods can be used for both send and receive operations).

Table 9‒2: Settings for HostA and HostB (JP1/IM - View)
Host name	Host to connect	Other conditions^#
`HostA`	`HostX`	Conversion from host name `HostX` to 10.1.1.2 must be possible.
`HostB`	`HostX`	Conversion from host name `HostX` to 20.1.1.2 must be possible.

#: Use the hosts file and DNS to resolve host names, because JP1/IM - View does not reference settings in the jp1hosts and jp1hosts2 files.
