13.3.10 Configuration for differing product versions

An example of a system configuration in which differing versions of JP1 products coexist is shown below.

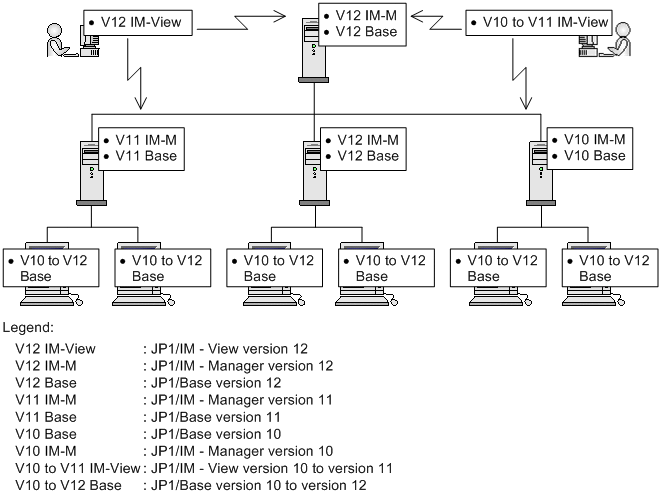

Figure 13‒11: Example of configuration for differing product versions

Note the following points when monitoring operations in a JP1/IM system with differing product versions:

Versions 12, 11, and 10 cannot coexist on the same machine.

For example, you cannot run JP1/Base version 12 and JP1/IM - Manager version 11 on the same machine.
When products of different versions are linked, only the functions provided by the oldest of the versions can be used.

For example, if JP1/IM - View version 10 connects to JP1/IM - Manager version 12, the operations you can perform are limited to those supported in JP1/IM - View version 10.

For details about the restrictions that apply when different product versions coexist, see Appendix H. Connectivity with Previous Versions.
