13.3.9 Configuration for operation on a logical host in a non-cluster environment

JP1/IM - Manager can be run on a logical host in a non-cluster environment. By using a logical host that is not subject to failover, you can run multiple instances of JP1/IM - Manager, each dedicated to a particular application.

You can monitor more than one system from a single machine by running an instance of JP1/IM - Manager on a logical host corresponding to each system. The following figure shows an example of using JP1/IM - Manager to perform integrated monitoring of two systems from a single machine.

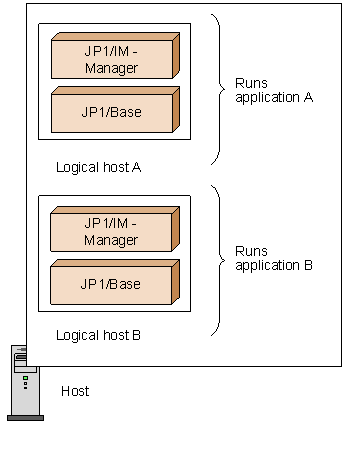

Figure 13‒10: Performing integrated monitoring of two systems from one machine

For details, see 7.9 Logical host operation and environment configuration in a non-cluster system (for Windows) in the JP1/Integrated Management 2 - Manager Configuration Guide.
