13.3.3 Configuration with JP1/AJS for monitoring job execution
By linking JP1/IM with JP1/AJS, you can view information about jobs being executed by JP1/AJS from JP1/IM - View. Also, you can open JP1/AJS windows from JP1/IM - View, and then define or operate on jobs.

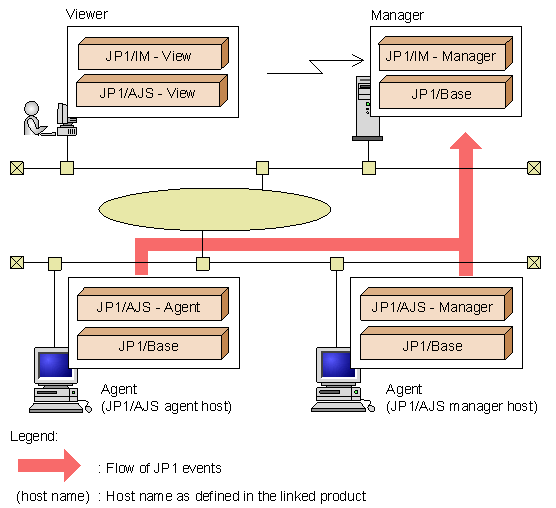

The figure below shows an example of a system configuration that links JP1/IM with JP1/AJS.
|
|
![[Figure]](GRAPHICS/CS070300.GIF)
The following products are required on each host:
- Managers
-
-
JP1/IM - Manager
Runs the Central Console and Central Scope. The Central Scope is required to monitor the system by associating jobs and JP1 events. It is not required to monitor job execution simply by monitoring JP1 events.
-
JP1/Base
-
- Agents (JP1/AJS manager hosts)
-
-
JP1/AJS - Manager
-
JP1/Base
-
- Agents (JP1/AJS agent hosts)
-
-
JP1/AJS - Agent
-
JP1/Base
-
- Viewer
-
-
JP1/IM - View
-
JP1/AJS - View
JP1/AJS - View is required on the viewer to open and work with JP1/AJS windows from JP1/IM - View.
-
In this example, JP1 events related to the execution status of JP1/AJS jobs are forwarded to the manager, and the status of each job is monitored from JP1/IM - View.
On the viewer, the user accesses JP1/AJS - View from JP1/IM - View. JP1/AJS - View connects to JP1/AJS - Manager for performing operations in JP1/AJS.
