9.8.1 Displaying the performance reports of event-source hosts

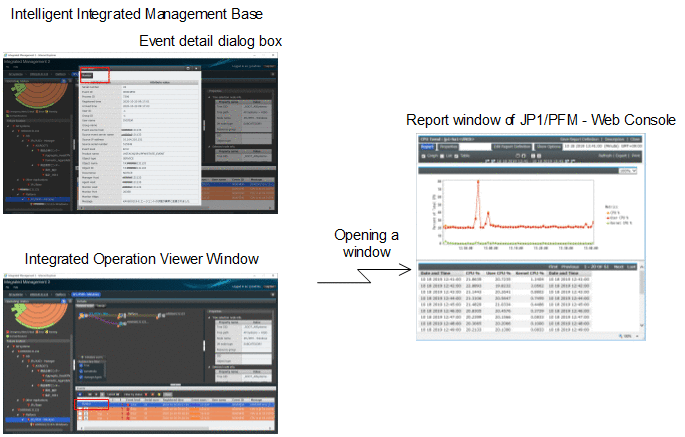

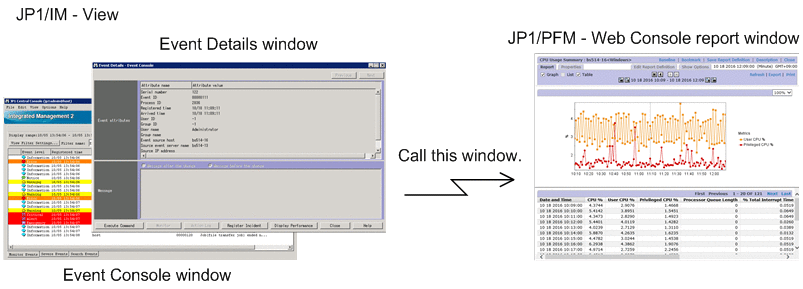

The user can now display the JP1/PFM - Web Console report window or the Integrated Operation Viewer window that indicates the performance of a selected event-source host at the time of an event directly in Central Console (single sign-on).
|
|
![[Figure]](GRAPHICS/CS040100.GIF)
|
|
![[Figure]](GRAPHICS/DD040150.GIF)
- Organization of this subsection
(1) Prerequisites for displaying the performance reports of event-source hosts
The following are the prerequisites for using the function for displaying the performance reports of event-source hosts:
-
The version of JP1/IM - Manager, JP1/IM - View, and JP1/PFM - Web Console must be 11-10 or later.
-
The same authentication server must be used for JP1/IM - Manager and the target JP1/PFM - Web Console.
-
The authentication mode of the target JP1/PFM must be a JP1 authentication mode that is managed centrally by JP1/Base.
-
The user must be able to log in to the target JP1/PFM - Web Console from the JP1/IM - View host.
-
The JP1 user logged in to JP1/IM - Manager must have the permissions required to display the target window.
- Important
-
If the system times among the following hosts and servers are not correct and the system time is changed, valid performance reports might not be displayed:
-
JP1/IM manager hosts and monitored hosts
-
JP1/PFM monitoring managers, monitoring agents, monitored hosts, and monitoring console server
Synchronize the time throughout the entire system by NTP, and then make sure that the system time is not changed.
-
(2) JP1 events that can be used to display the performance reports of event-source hosts
You can display the performance reports for event-source hosts from all JP1 events except dummy events.
(3) Hosts subject to display of performance reports
A host subject to display of performance reports must have an event attribute shown in the following table in a selected event. The target event attributes vary according to the settings of the event-source host mapping function.
|
Settings of the event-source host mapping function# |
Event attribute |
|---|---|
|
Enabled |
Event-source host name (E.JP1_SOURCEHOST) |
|
Disabled |
Event-issuing server name (B.SOURCESERVER) |
#: The following notes apply:
-
If you have changed the enable/disable setting of the event-source-host mapping function, restart JP1/IM - View and then log in again.
-
If you will be enabling the event-source-host mapping function, define mapping in such a manner that the name of the host to be monitored is set as the event-source-host name (E.JP1_SOURCEHOST).
-
If you will be performing remote monitoring, enable event-source-host mapping.
(4) Timing of the performance reports that are displayed
JP1/PFM displays performance reports for the time specified in the Registered time (B.TIME) event attribute in the selected event.
The time displayed in performance reports is for the time zone of JP1/PFM - Web Console.
(5) Single sign-on from JP1/IM - View or Intelligent Integrated Management Base to JP1/PFM - Web Console
When JP1/PFM is linked to display the performance reports of event-source hosts, a JP1 user who is logged in to JP1/IM - Manager from JP1/IM - View or Intelligent Integrated Management Base are logged in to JP1/PFM - Web Console automatically. If the login processing is successful, the JP1/PFM - Web Console login window is not displayed.
(6) Settings for displaying the performance reports of event-source hosts
To use the event-source host performance report display function, you must define the URLs of the target JP1/PFM - Web Consoles in the performance report display definition file.
For details about the settings, see the JP1/PFM documentation.
