9.7.1 Displaying a monitor window from event guide information (event guide function)

By clicking the URL of the JP1/AJS - Web Console that is displayed in the event guide information, the user can now display the JP1/AJS - Web Console monitor window that corresponds to a JP1/AJS job or jobnet in Central Console (single sign-on) or Integrated Operation Viewer.

To display the JP1/AJS - Web Console monitor window, users also can use single sign-on to directly display the window.

This subsection assumes that single sign-on is enabled to display the JP1/AJS - Web Console monitor window from the event guide information.

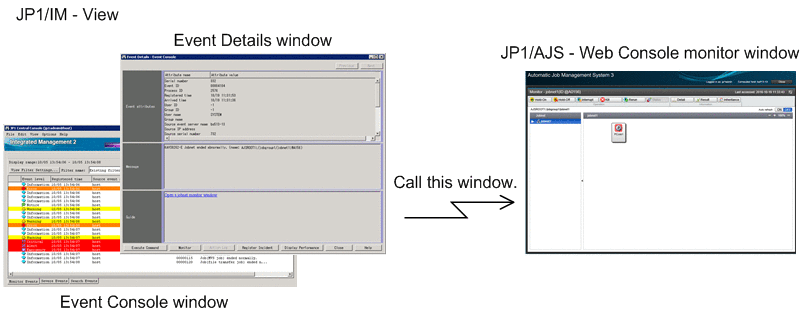

Figure 9‒10: Displaying a monitor window from JP1/IM - View

[Figure]

Organization of this subsection

(1) Prerequisites for displaying a monitor window from event guide information

The following are the prerequisites for using single sign-on to display a JP1/AJS - Web Console monitor window from event guide information:

(2) Setting for displaying a monitor window from event guide information

To display a JP1/AJS - Web Console monitor window from a URL in the event guide information, you must specify the URL for linking JP1/AJS - Web Console in the event guide message file.

For details about the setting, see the JP1/AJS documentation.
