9.3.2 Checking the status and result of notification to JP1/IM - Rule Operation

You can check the status and result of notification to JP1/IM - Rule Operation using the following windows and command:

• Action Log window

• Action Log Details window

• List of Action Results window

• jcashowa command

For details about how to interpret the notification status and result, see Chapter 3. Event Console Window in the manual JP1/Integrated Management 2 - Manager GUI Reference and Chapter 1. Commands in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.

When the following conditions are satisfied, you can open the Rule Log Details window, which serves as the GUI for JP1/IM - Rule Operation, from any of the three windows listed above. You can then view the execution status of the rule:

• The Type of the automated action is (Rule).

• The Return code of the automated action is 0.

  You cannot open the Rule Log Details window when the return code is non-zero as rule startup will not have occurred.

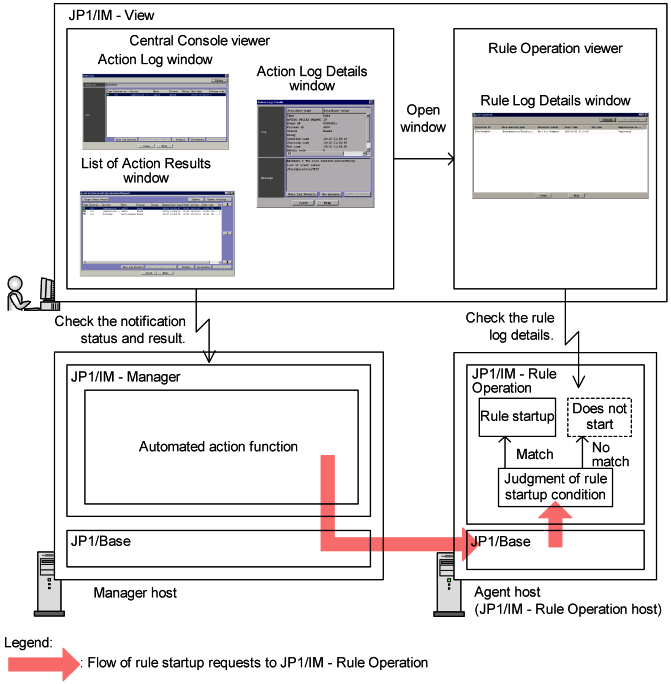

  Figure 9‒7: Checking the notification status and result and checking the rule log details

When you open the JP1/IM - Rule Operation window from JP1/IM - View, you are logged in according to the authentication information in JP1/IM - View. Note that JP1/IM - View authentication information is invalidated when:

• The authentication server that you are logged in to is restarted.

• The information is reloaded by the jbs_spmd_reload command on the authentication server that you are logged in to.

• The primary authentication server that you are logged in to is switched to the secondary authentication server.

When the authentication information in JP1/IM - View is invalid, the operations you can perform depend on the product versions, as follows:

• When JP1/IM - Manager and JP1/IM - View are both version 08-10 or later, you are automatically re-authenticated and authentication information is re-acquired in JP1/IM - View.

• When either JP1/IM - Manager or JP1/IM - View is version 08-01 or earlier, authentication fails on the JP1/IM - Rule Operation side.
