9.2 Linking with JP1/Navigation Platform

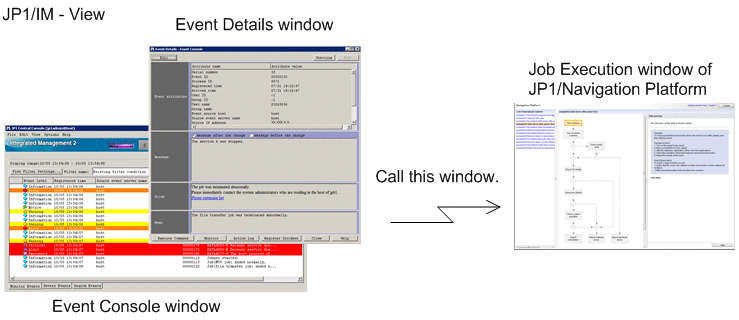

The Central Console lets you to view the application information (operating procedure) applicable to a JP1 event displayed in the event list of JP1/IM - View. To view the information, specify the URL of JP1/Navigation Platform in an event-guide message file provided by the event guide functionality.
|
|
![[Figure]](GRAPHICS/CS040050.GIF)
To view the application information (operating procedure) by single sign-on, configure the system so that the same authentication server is used for JP1/IM - Manager and JP1/Navigation Platform. Also, on the authentication server, specify 10-10 or later as the JP1/Base version.
The following table lists the combinations of JP1 product versions that permit you to view application information (operating procedures) by single sign-on.
|
Version |
JP1/IM - View 10-00 or earlier |
JP1/IM - View 10-10 or later |
||||
|---|---|---|---|---|---|---|
|
JP1/IM - NP 10-00 (uCNP09-50) |
JP1/IM - NP 10-10 (uCNP09-60) |
JP1/IM - NP 10-50 or later#1 (HNP10-00 or later) |
JP1/IM - NP 10-00 (uCNP09-50) |
JP1/IM - NP 10-10 (uCNP09-60) |
JP1/IM - NP 10-50 or later#1 (HNP10-00 or later) |
|
|
JP1/IM - Manager 10-00 or earlier |
N |
N |
||||
|
JP1/IM - Manager 10-10 or later |
N |
N |
Y#2 |
|||
- Legend:
-
Y: Application information (operating procedures) can be displayed by single sign-on.
N: Application information (operating procedures) cannot be displayed by single sign-on (The JP1/IM - Navigation Platform login window appears).
#1: The product name of JP1/IM - NP will be changed to JP1/Navigation Platform in version 11-00 and later.
#2: Specify the URL for single sign-on in the event-guide message file on the Central Console.
For details about the settings for calling JP1/Navigation Platform's Operational Content Execution window, see the section on the URL for calling Navigation Platform from JP1 products.
- Using Navigation Platform and event guide function separately for a specific purpose
-
To reference a complex operating procedure that is difficult to understand from text alone, link with JP1/Navigation Platform and call the window of JP1/Navigation Platform where work tasks are executed, to view the procedure in an easy-to-understand format. To reference a simple operating procedure, for example, "Contact the system administrator," use the event guide function to directly display the procedure in the Guide field of the Event Details window.
