7.4.4 Monitoring using the Central Scope
You can use the Central Scope to monitor a business group by the two methods below.
When you apply business group information to the Central Scope, you can apply the information only to server-oriented trees.
For details about the setting procedure, see 3.4.4(2) Applying business group information and monitoring group information to the Central Scope monitoring tree in the JP1/Integrated Management 2 - Manager Configuration Guide.
- Organization of this subsection
(1) Using commands to import information into the Central Scope
You can export business group information and monitoring group information, convert the information by using the jcfmkcsdata command, and import the converted information into the Central Scope.

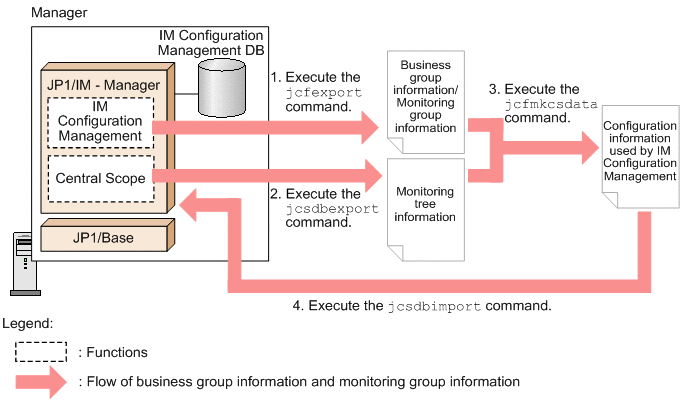

The following figure shows how business group information and monitoring group information are imported into the Central Scope.
|
|
![[Figure]](GRAPHICS/CF073015.GIF)
The flow of importing business group information and monitoring group information into the Central Scope is described below, following the numbers in the figure:
-
Execute the jcfexport command to output business group information and monitoring group information.
-
Execute the jcsdbexport command to output the monitoring tree information shown in the Central Scope. (This information is saved in the monitoring object database of JP1/IM - Manager.)
-
Execute the jcfmkcsdata command to merge the files output in steps 1 and 2.
-
Execute the jcfmkcsdata command with the -g option specified.
-
Execute the jcsdbimport command to import the merged file generated in step 3 into the Central Scope.
For details about each command, see Chapter 1. Commands in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.
(2) Using the IM configuration management viewer to apply information to the Central Scope
In the IM Configuration Management window of the IM configuration management viewer, you can apply business group information and monitoring group information to the Central Scope. For details about the permissions required for the JP1 user logged in to the IM configuration management viewer to perform this operation, see 7.4.3 Viewing and operating permissions for business groups.
Applying business group information and monitoring group information to the Central Scope updates the monitoring tree of the Central Scope. Note that the hosts placed under a business group are not displayed in the monitoring tree of the Central Scope. The hosts in a monitoring group are displayed in the tree.
