7.4 Managing business groups
Using IM Configuration Management, you can monitor multiple monitored hosts by grouping them as individual business systems or as monitoring targets managed by individual system administrators. A unit of hosts grouped based on a certain objective is called a business group. In the Event Console window (Central Console) or the Monitoring Tree window (Central Scope), you can manage the scope of JP1 events that can be viewed and the scope of monitoring settings that can be operated on for individual business groups. These permitted scopes are called a view permission and operating permission respectively. By restricting the view permission and operating permission for business groups, you can monitor and handle individual business groups differently.
- Note
-
Monitoring in the Event Console window, the Monitoring Tree window and the Integrated Operation Viewer Window
- Monitoring in the Event Console window
-
The information settings of business groups are passed to the Event Console window (Central Console). If you enable restriction of viewing and operating business groups in the Central Console, in the Event Console window, you can view and operate only the JP1 events issued in the business group you are in charge of. For details, see 4.1.4 Restrictions on viewing and operating business groups.
- Monitoring in the Monitoring Tree window
-
If you apply the setting information of business groups to the Central Scope, the hierarchical configuration of business groups and the view and operating
- Monitoring in the Integrated Operation Viewer Window
-
When restrictions on viewing and operating business groups are enabled, you can only view the nodes corresponding to, or the events that have occurred on, the hosts that belong to the business group you are in charge of.

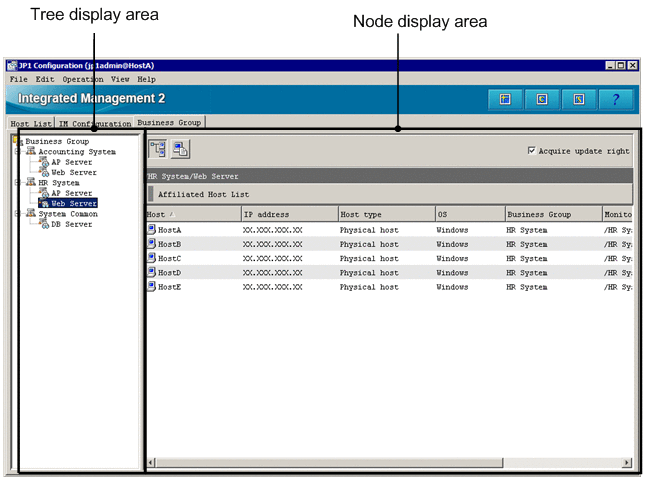

You can check the defined business groups in the tree display area on the Business Group page of the IM Configuration Management window. The following figure is an example of displaying business groups.
|
|
![[Figure]](GRAPHICS/CF074050.GIF)
Before using this business group functionality, you need to set business groups. To set business groups, you need to acquire update rights. For details about how to set business groups, see 3.4 Setting business groups in the JP1/Integrated Management 2 - Manager Configuration Guide.
