5.6.2 Setting status colors for monitoring node name and monitoring node

You can specify status colors for monitoring node names with RGB values. You can also specify the colors of individual statuses (including Initial and Error) of monitoring node with RGB and alpha (A) values. According to the settings of status colors for monitoring nodes, the color of the area (around the monitoring node icon) that indicates the status of each monitoring node changes. Note, however, that A values are applied to windows only when the suppression of the display of monitoring node name and the margins of monitoring node icon are enabled.

Note also that, in the Monitoring Tree (Editing) and Visual Monitoring (Editing) windows, only the status color for the Initial status is used to indicate the status of the monitoring node.

The following table lists the windows of the Central Scope to which the settings of status colors for monitoring node names and monitoring nodes are applied when the settings are enabled.

Table 5‒9: Applicable range of the settings of status colors for monitoring node name and monitoring node

Window name	Applicability
Monitoring Tree window	Y
Monitoring Tree (Editing) window#	Y
Visual Monitoring window	Y
Visual Monitoring (Editing) window#	Y

The following figure shows examples of windows for which the settings of the status colors for monitoring node names and monitoring nodes are enabled.

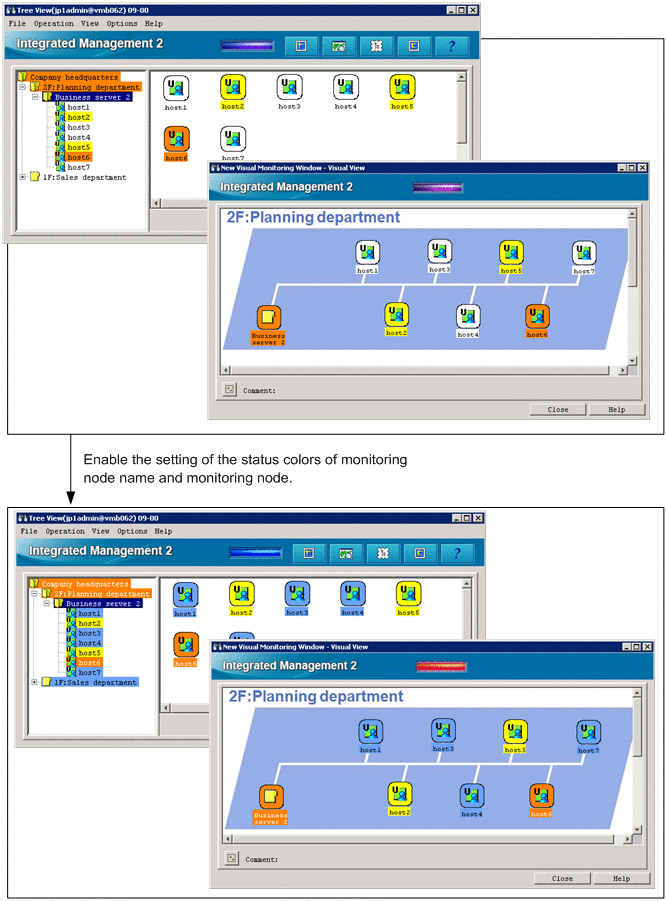

Figure 5‒18: Examples of windows for which the settings of the status colors for monitoring node names and monitoring nodes are enabled
