5.6.1 Suppressing display of monitoring node name and the margins of monitoring node icon

The map view in the Monitoring Tree window and the Visual Monitoring window displays a monitoring node name under each monitoring node icon. The map view and the Visual Monitoring window displays margins around the monitoring node icon as an area to show the color that indicates the current status of the monitoring node. The monitoring node name and the margins around the monitoring node icon are not displayed when suppression of their display is enabled.

The following table lists the windows of the Central Scope to which the suppression of the display of monitoring node name and the margins for monitoring node icon is applied when the suppression is enabled.

Table 5‒8: Applicable range of the suppression of the display of monitoring node name and the margins for monitoring node icon

Window name

Applicability

Monitoring Tree window

Y

Monitoring Tree (Editing) window

Y

Visual Monitoring window

Y

Visual Monitoring (Editing) window

Y

Legend:

Y: Applicable

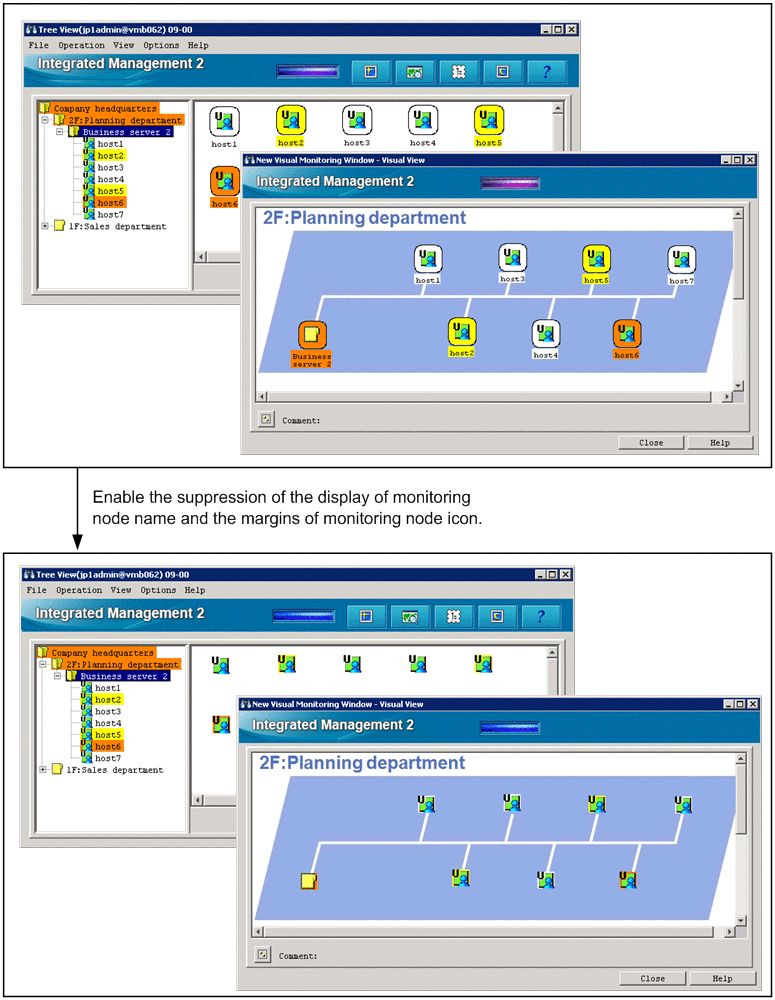

The following figure shows examples of windows for which the suppression of the display of monitoring node name and the margins for monitoring node icon are enabled.

Figure 5‒17: Examples of windows for which the suppression of the display of monitoring node name and the margins for monitoring node icon are enabled

[Figure]
