3.4.2 Completed-action linkage function

The completed-action linkage function automatically changes the status of a management object according to the event status of a JP1 event related to the management object. The status of the monitoring object is changed in conjunction with the event status of the JP1 event related to the management object that is shown in the Central Console or the event view of the integrated operation viewer, or changed by the jcochstat command.

This subsection provides some examples of changes in the status of a management object due to changes to the event status of the JP1 event related to the management object.

When the JP1 event is a consolidation event, the event status of the consolidation start event is displayed. In order for the status to change, you have to change not only the event status of the consolidation start event but also the event statuses of all repeated events as resolved.

Organization of this subsection

(1) If there is one JP1 event related to the management object and the event status is changed to Processed from a status other than Processed
(2) If there is one JP1 event related to the management object and the event status is changed from Processed to a status other than Processed
(3) If there are two or more JP1 events related to the management object and the event statuses of part of the related JP1 events are changed to Processed from a status other than Processed
(4) If there are two or more JP1 events related to the management object and the event statuses of part of the related JP1 events are changed from Processed to a status other than Processed

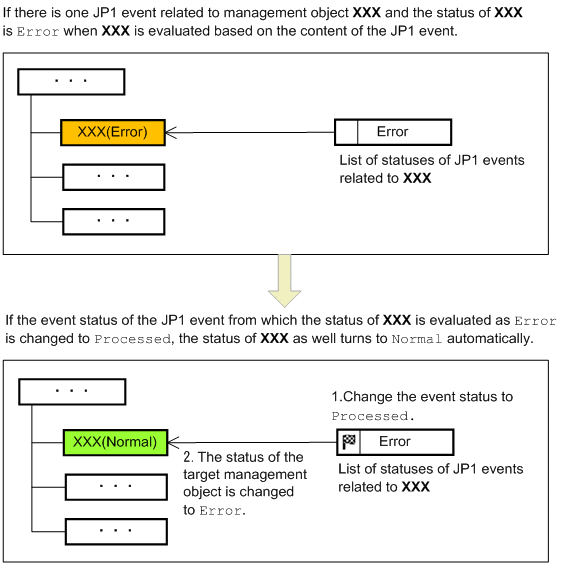

(1) If there is one JP1 event related to the management object and the event status is changed to Processed from a status other than Processed

The status of the management object is changed to Normal from the status evaluated based on the related JP1 event.

Figure 3‒9: Example of one JP1 event and the event status being changed to Processed from a status other than Processed

To Page Top

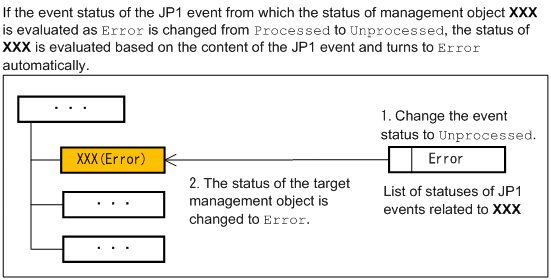

(2) If there is one JP1 event related to the management object and the event status is changed from Processed to a status other than Processed

The status of the management object is changed to a status evaluated based on the related JP1 event from Normal.

Figure 3‒10: Example of one JP1 event and the event status being changed from Processed to a status other than Processed

To Page Top

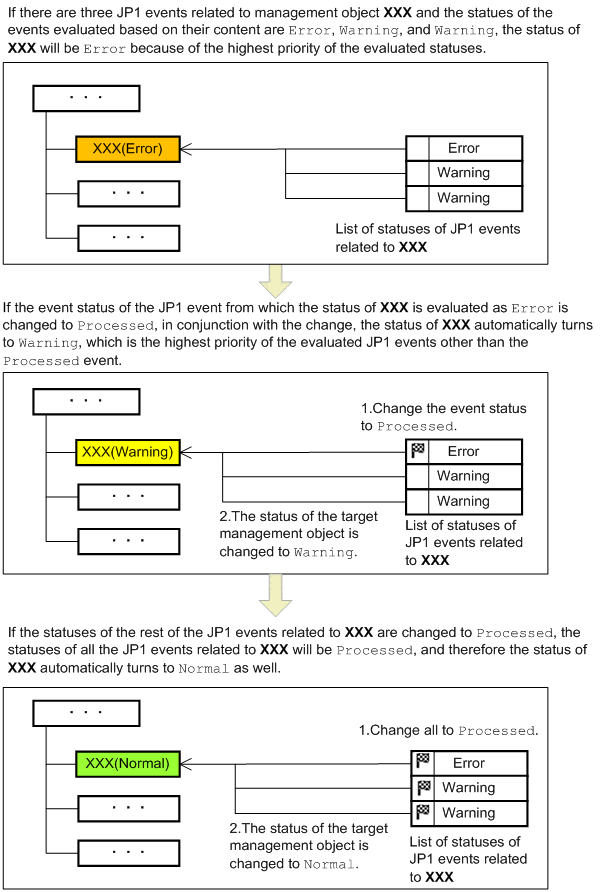

(3) If there are two or more JP1 events related to the management object and the event statuses of part of the related JP1 events are changed to Processed from a status other than Processed

The status of the management object is changed from a status evaluated based on the related multiple JP1 events to a status re-evaluated based on JP1 events other than the JP1 event whose event status was set to Processed.

Figure 3‒11: Example of two or more JP1 events and the event statuses of part of the related JP1 events being changed to Processed from a status other than Processed

To Page Top

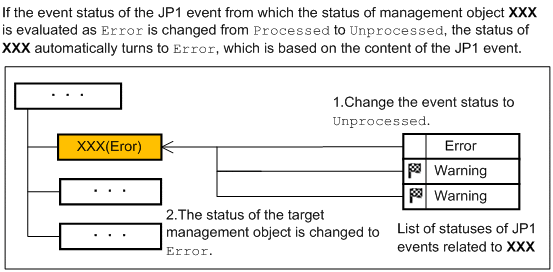

(4) If there are two or more JP1 events related to the management object and the event statuses of part of the related JP1 events are changed from Processed to a status other than Processed

The status of the management object is changed from a status evaluated based on the related multiple JP1 events to a status re-evaluated including the JP1 event whose event status is changed to a status other than Processed.

Figure 3‒12: Example of two or more JP1 events and the event statuses of part of the related JP1 events being changed from Processed to a status other than Processed
