1.4 System operation with JP1/IM - Manager

JP1/IM - Manager provides full support for a unified flow of operations from system monitoring through to error detection, investigation, and resolution. The following figure shows the functions that support each phase of the system operating cycle.

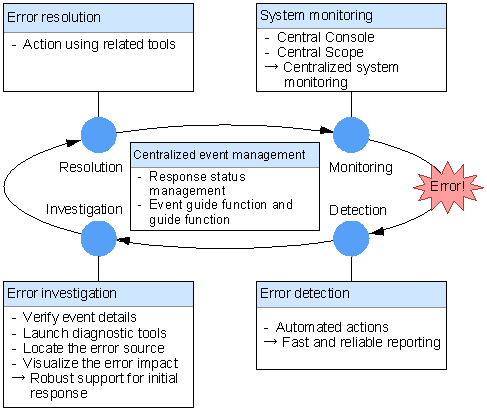

Figure 1‒16: System operation with JP1/IM - Manager

[Figure]

No matter how large or complex the system, JP1/IM - Manager enables a diverse range of resources to be managed in an integrated fashion. By providing the capability to accurately grasp the system status, and to rapidly detect and deal with problems as they occur, JP1/IM - Manager ensures that the entire system runs reliably.

When using IM Configuration Management, you can define the system hierarchy in the IM configuration management viewer, and monitor the system from Central Console and Central Scope.

Figure 1‒17: Flow of system configuration and system monitoring with IM Configuration Management (build phase)

[Figure]
