C.1 Checking system status

The integrated operation viewer allows you to check system status.

This section describes how to check the failures occurring in the managed system.

Prerequisites

The OS user mapping must be configured according to the procedure in 3.2.1 Configuring user mapping.

Procedure

1. Display the integrated operation viewer in a Web browser.

2. In the sunburst chart or Failure location, select a component where a failure has occurred. Here, select Product Management.

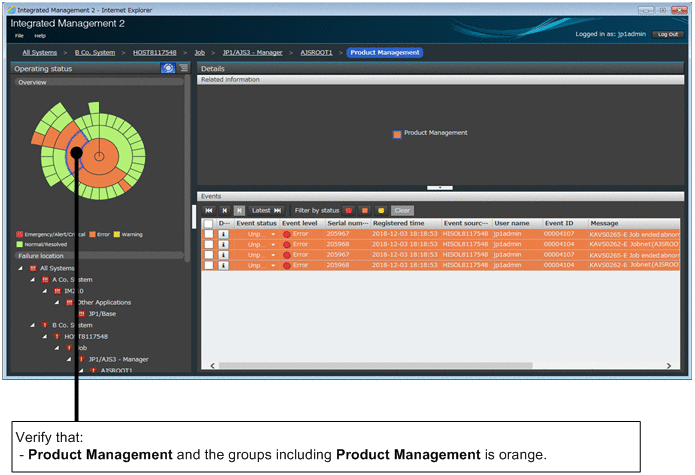

3. In this example, the color of the groups to which Product Management belongs is changed to indicate failure statuses.



4. Events occurring on Product Management appear in the Events area.

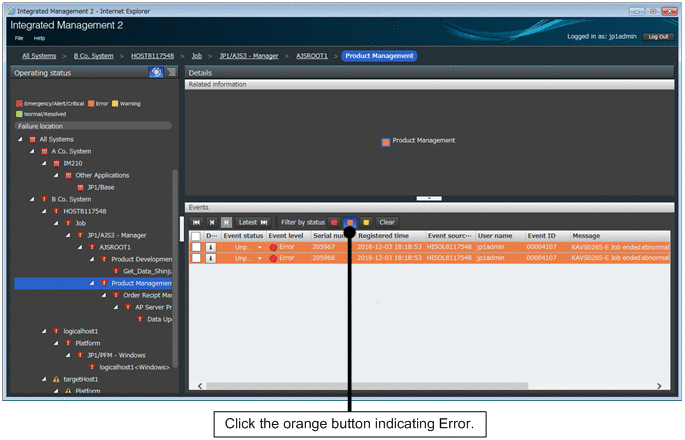

5. Click the orange button indicating Error. The events are filtered.



6. Click the button to see the details of the event.

Related topics

• 2. Integrated Operation Viewer Window in the manual GUI Reference
