B. Using Visual Monitoring to Understand the Extent of the Impact of a System Error

You can display the hierarchy and location of the monitored hosts for a visual indication of the extent to which an event issued in the system impacts the hosts. In this section, we will visually monitor a system to understand the extent of an event's impact.

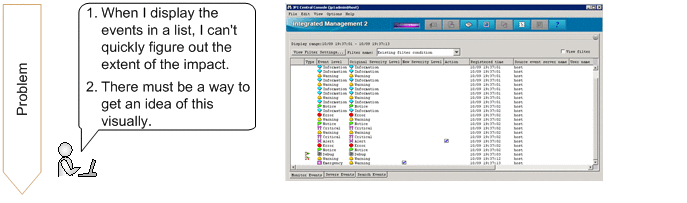

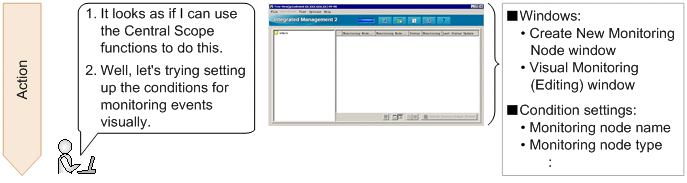

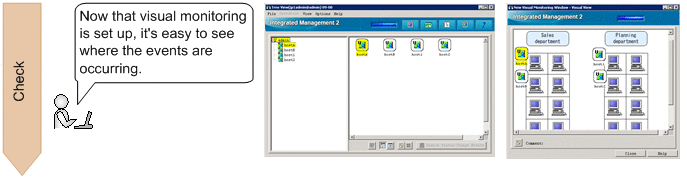

[Figure]

Keywords:

GUI, visual, event, tree, graphics, monitoring tree, central scope, object-oriented, visual

Organization of this section

B.1 Procedure for configuring visual monitoring
B.2 Verifying that you can monitor the extent of impact of events in map format and tree format
