3.1.2 Using IM Configuration Management to define the system hierarchy
On the IM Configuration page in the IM Configuration Management window, you can check the systems that were built by using IM Configuration Management. The following describes how to define the basic configuration system shown in 2.1 Overview of a basic configuration system.
Prerequisites
The hosts must be registered in IM Configuration Management.
Procedure
-
In the IM Configuration Management window, select Edit, and then Edit Agent Configuration. The Edit Agent Configuration window appears.
-

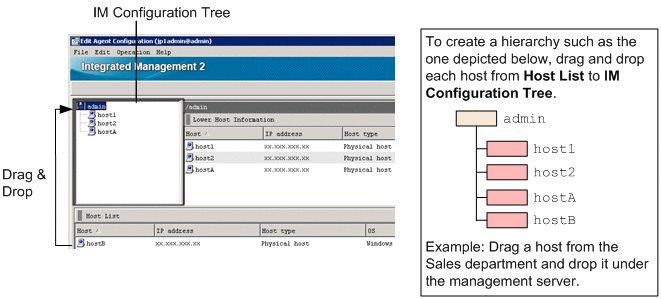

Configure the hosts to match the system hierarchy according to the following figure.
-
In the Edit Agent Configuration window, select the Acquire update right check box.
-
In the Edit Agent Configuration window, select Operation, and then Apply IM Configuration to reflect the definitions of the system hierarchy to JP1/IM - Manager.
Related topics
-
1.8 Setting the system hierarchy (when IM Configuration Management is used) (for Windows) in the Configuration Guide
-
3. Using IM Configuration Management to Set the System Hierarchy in the Configuration Guide
-
9. Managing the System Hierarchy Using IM Configuration Management in the Administration Guide
