2.5.3 Installing JP1/IM (for Linux)

This subsection describes how to install JP1/IM - Manager.

Organization of this subsection

(1) Installing JP1/IM - Manager (for Linux)

After you log on with root permissions to the machine on which JP1/IM - Manager will be installed, terminate all programs, and then install JP1/IM - Manager.

Prerequisites

The following conditions must be satisfied:

Procedure

  1. Terminate all programs.

    Before you start the installation, terminate all programs, and stop the JP1/Base services.

  2. Insert the JP1/IM - Manager distribution media into the drive.

  3. Execute the following command to install and start the Hitachi Program Product Installer:

    /cdrom/XXXX/setup /cdrom

    XXXX varies depending on your operating environment. For /cdrom, specify the device special file name for the drive on which the distribution media is automatically mounted.

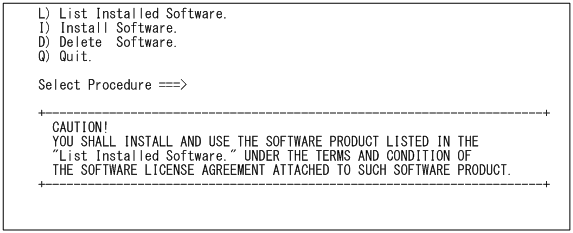

    When the Hitachi Program Product Installer starts, the following initial window appears.

    [Figure]

  4. In the initial window of the Hitachi Program Product Installer, enter I to display a list of software programs.

  5. In the list of software programs, move the cursor to JP1/IM - Manager, and then press the space bar to select it.

  6. In the Hitachi Program Product Installer window, enter I to start installation of JP1/IM - Manager.

  7. After installation is complete, enter Q to return to the initial window.

  8. Terminate the Hitachi Program Product Installer, and then create an automated startup script for JP1/IM - Manager.

    Execute the command as follows:

    cd /etc/opt/jp1cons

    cp -p jco_start.model jco_start
