JP1 Version 12 Job Management: Getting Started (High-speed Transfer of Huge Files)


2.2.2 Checking client environments and enabling the use of JP1/DH - Server (for Java applet)

Important

The procedure described in this section is required only if you use a Java applet to send and receive data. The default setting (where the App is used) does not require this procedure.

Follow the instructions given in the Check Your Environment window to set the environment of each client machine.

Prerequisites

Procedure

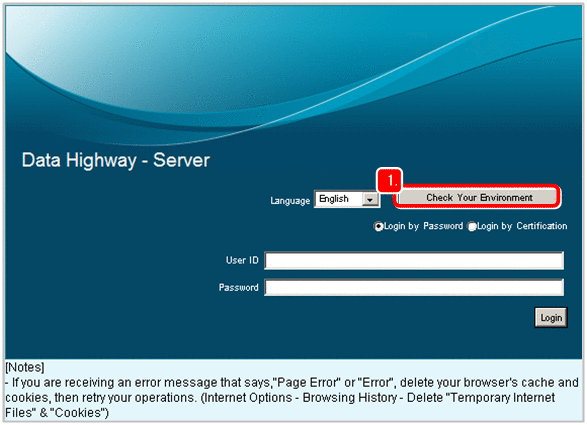

  1. Access the JP1/DH - Server URL, and then click the Check Your Environment button in the login window

    [Figure]

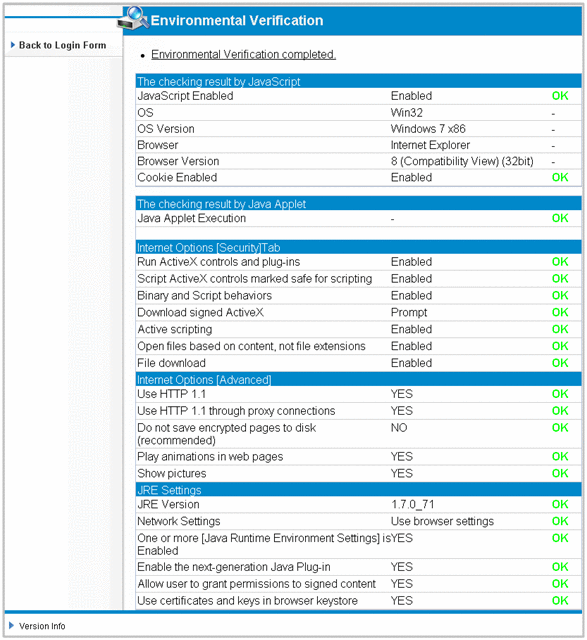

  2. The Check Your Environment window appears. In this window, verify that the configured environment is correct.

    If items exist for which NG is displayed, review their settings. Repeat this step until OK is displayed for all check items.

    [Figure]

Postrequisites

Related topics
