1.2.1 Checking the environment in which JP1/DH - Server will be set up

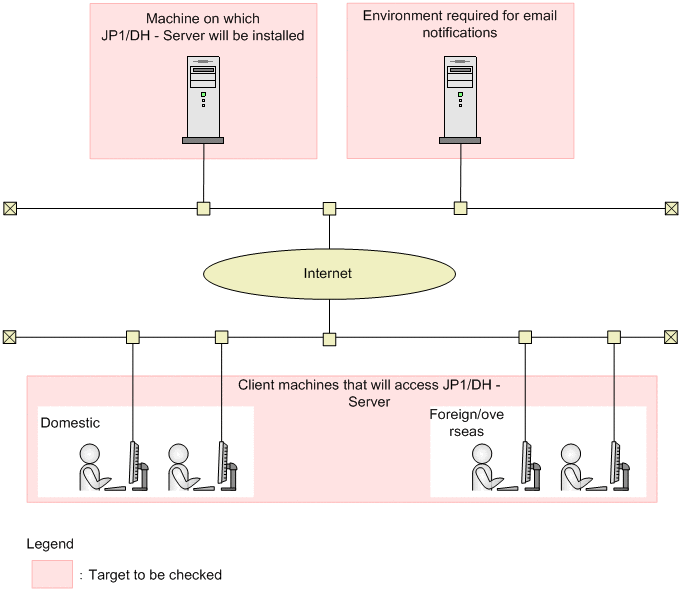

Before you install JP1/DH - Server, check whether the following items are appropriate:

Organization of this subsection

(1) Checking the environment of the machine on which JP1/DH - Server will be installed

Check whether the environment of the machine on which JP1/DH - Server will be installed is appropriate.

Procedure

Prepare a dedicated server machine.

Prepare a dedicated server machine for JP1/DH - Server. To enable JP1/DH - Server to provide its highest performance when delivering large amounts of data, avoid using JP1/DH - Server and other systems on the same machine.
Check the CPU performance. (Verify that the CPU is a dual core 64-bit CPU running at 2.4 GHz or higher.)
Verify that the amount of memory is 3.0 GB or more.

Verify that the required amount of disk space meets the conditions below.

The disk space requirements assume the values in the following table:

Item	Assumed value
Number of users	100
Size of exchanged data	100.0 MB to 1.0 GB
Number of data items exchanged per day	100 (at a maximum)
Total size of files delivered per day	100.0 GB (at a maximum)
Data storage period	31 days

Installation folder: C:\Program Files\Hitachi\jp1dh\server\

Disk space for application installation: 2.0 GB or more
Storage folder for delivery data: C:\Program Files\Hitachi\jp1dh\server\data\

Disk space required to store delivery data: 3.5 TB or more^#

#:

If you are merely trying out the software, at least 300 GB is sufficient. In this case, the data storage period will be approximately 3 days (assuming the size and number of files being stored remains unchanged). If the amount of data delivered exceeds the disk space for storing delivery data, no further data can be delivered. Data for which the storage period has been exceeded is deleted from the folder and can no longer be downloaded.
Disk space required for database while JP1/DH - Server is running: at least 80.5 MB
Disk space for log data storage: at least 5.0 GB

Verify that the network interface speed is 1.0 Gbps or higher.
Verify that no file or folder named Program exists in the installation target machine.

If a file or folder named Program exists under the root of the system drive, the program will not run properly. If such a file or folder exists, delete it before you install JP1/DH - Server.
Verify that PostgreSQL is not installed and that no postgres user accounts are in the installation target machine.

If PostgreSQL is installed on the machine, uninstall it before you install JP1/DH - Server.

If postgres user accounts exist in the machine, delete them before you install JP1/DH - Server.

Important

In Windows Server 2012 ,Windows Server 2012 R2 and Windows Server 2016, Microsoft .NET Framework 3.5 must be installed to use the command prompt with the elevated privileges, which is installed together with JP1/DH - Server. For details about how to install Microsoft .NET Framework 3.5, see Installing .NET Framework 3.5 in the JP1/Data Highway - Server Configuration and Administration Guide.

Related topics

Installing .NET Framework 3.5 in the JP1/Data Highway - Server Configuration and Administration Guide

Verify that the environments of the machines that will access JP1/DH - Server are appropriate.

Procedure

Check the CPU performance. (Verify that the CPU is a dual core CPU running at 2.4 GHz or higher.)
Verify that the amount of memory is 3.0 GB or more.

Verify that the disk space available for applet log output meets the conditions below.

The disk space for applet log output assumes the following values:

Item	Assumed value
Number of data items exchanged per day	1
Delivery data file size	1,000.0 MB (at a maximum)

Disk space available for applet log^# output: 840.0 MB or more

#: Applet logs are output when client machines communicate with JP1/DH - Server.

Check and determine the environment required to use email notifications on JP1/DH - Server.

Procedure

Check the mail server used by the system.

In the environment in which JP1/DH - Server will be installed, verify that the mail server that is currently in operation supports SMTP.

JP1/DH - Server sends email notifications to users to report information such as the delivery status of data. Therefore, the mail server used by the system must support SMTP.
Determine the sender's email address.

Determine the sender's email address for the email notifications sent from JP1/DH - Server to users. This email address is set in the sender field of the email notifications that are received by JP1/DH - Server users.

Postrequisites

Check the OSs required for both the machine on which JP1/DH - Server will be installed and the client machines that will access JP1/DH - Server.
Check the web browsers that can be used on the client machines.

Related topics
