5.1.3 Performing scheduled transmissions
To perform scheduled transmissions, you must first create a jobnet and then register the schedule in the jobnet.
- Organization of this subsection
(1) Creating a jobnet
To create a jobnet:
-
From the Windows Start menu, choose Programs, JP1_Automatic Job Management System 3 - View, and Job System Management, and then log in.
The JP1/AJS3 - View window is displayed.
-
From the Edit menu, choose New and then Jobnet to create a jobnet.
-
Specify each setting and then click OK.
The following figure shows an example of the settings. For details, see the JP1/Automatic Job Management System 3 Linkage Guide.

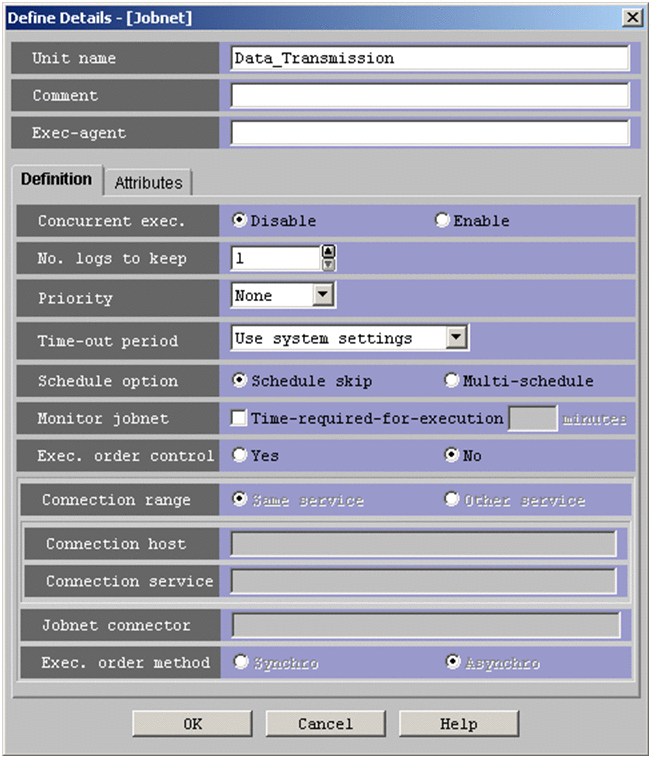

Figure 5‒3: Example of the settings in the Define Details - [Jobnet] dialog box -
Double-click the created jobnet.
The Jobnet Editor window appears.
-
Select Exclusive edit.
-
From the icon list, drag the required job icon to the map area.
The JP1/FTP icon is the
icon on the Custom Jobs page.
The Define Details - [Custom Job] dialog box appears.
-
In Command statement, specify the transmission card in the following format:
ftstran transmission-card-name
The following figure shows an example of the settings.

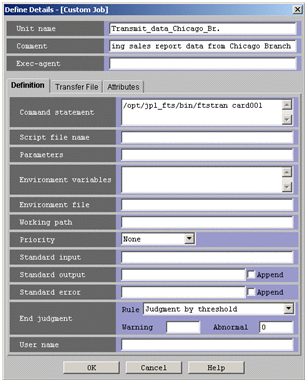

Figure 5‒4: Example of the settings in the Define Details - [Custom Job] dialog box -
Specify other settings, and then click OK.
For details, see the JP1/Automatic Job Management System 3 Linkage Guide.
-
If necessary, set the job type as a UNIX job and associate the jobs.
The following figure shows an example of the settings.

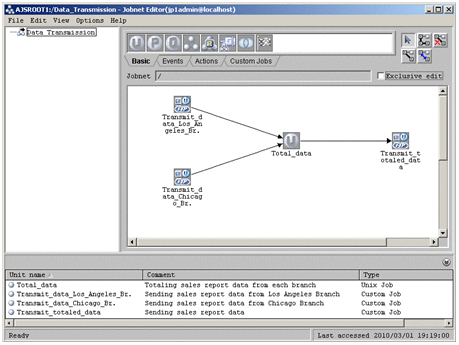

Figure 5‒5: Example of the jobnet settings -
Close the Jobnet Editor window.
(2) Registering a schedule
To register a schedule:
-
From the list area of the JP1/AJS3 - View window, select the jobnet that is to be scheduled, and then from the Edit menu, choose Schedule.
The Schedule Settings dialog box is displayed.
-
Specify each setting and then click OK.
The figure below shows an example of the settings. For details, see the JP1/Automatic Job Management System 3 Linkage Guide.

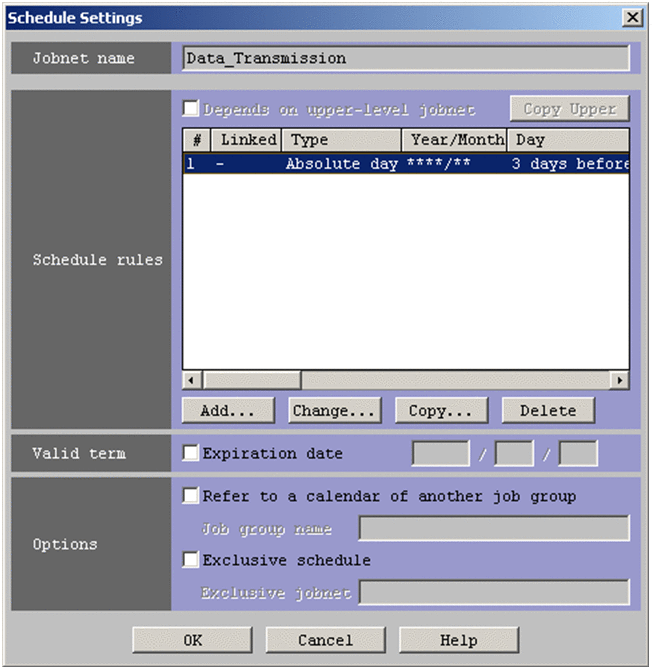

Figure 5‒6: Example of the settings in the Schedule Settings dialog box -
From the list area of the JP1/AJS3 - View window, select the jobnet to be registered for execution, and then from Operations, choose Register for Execution.
The Register for Execution dialog box is displayed.
-
Specify each setting and then click OK.
The figure below shows an example of the settings. For details, see the JP1/Automatic Job Management System 3 Linkage Guide.

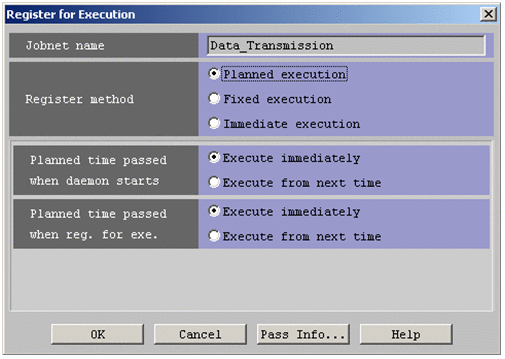

Figure 5‒7: Example of the settings in the Register for Execution dialog box
