5.1.2 Specifying the settings for linking to JP1/AJS3

To register JP1/FTP into JP1/AJS3 as a custom job in order to link JP1/FTP to JP1/AJS3:

1. From the Windows Start menu, choose Programs and then JP1_Automatic Job Management System 3 - View, and then Register Custom Job.

   The Register Custom Job dialog box appears.

2. Click Add.

   The Set Properties of Custom Job dialog box appears.

3. Set each item and then click OK.

4. Restart JP1/AJS3.

   The custom job is registered. The following shows the Set Properties of Custom Job dialog box and the settings.

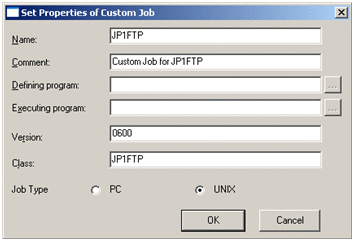

   Figure 5‒2: Set Properties of Custom Job dialog box

   Table 5‒1: Settings in the Set Properties of Custom Job dialog box

   Item	Setting
   Name ((1 to 8-byte character string))	Specify any name for the custom job. This item is mandatory.
   Comment ((0 to 40-byte character string))	Specify any desired comment. The forward slash (/) and the space cannot be used in a comment.
   Defining program	Specify nothing.
   Executing program	Specify nothing.
   Version	0600 (fixed)
   Class	JP1FTP (fixed)
   Job Type	UNIX
