1.3.3 Saving and recovering JP1/FTP settings

You can save and recover JP1/FTP settings and output them in text format.

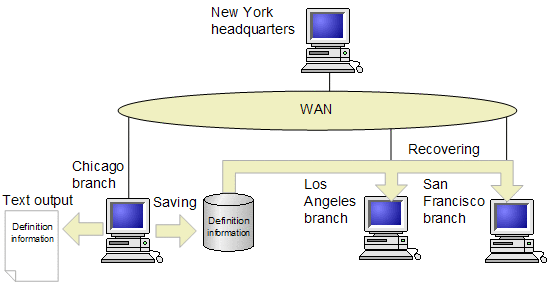

Figure 1‒5: Example of saving and recovering JP1/FTP settings

Overview of operation	Executing host	Reference
Saving and recovering JP1/FTP settings: You can save the definition information created at one host and then recover it at other hosts. Definition information that can be saved and recovered: Environment settings Auto-start program settings Transmission settings This example recovers definition information for the Chicago branch at the Los Angeles and San Francisco branches. This makes it easy to set up environments.	Host where the information is registered	3.7 Saving and recovering JP1/FTP settings
Outputting definition information as text: You can output the registered information in text format. For the output format, use the provided sample. Definition information that can be output as text: User-to-login settings Auto-start program settings Transmission settings Log information	Host where the information is registered	3.8 Outputting definition information as text

Overview of operation

Executing host

Reference

Saving and recovering JP1/FTP settings:

You can save the definition information created at one host and then recover it at other hosts.

Definition information that can be saved and recovered:

Environment settings
Auto-start program settings
Transmission settings

This example recovers definition information for the Chicago branch at the Los Angeles and San Francisco branches. This makes it easy to set up environments.

Host where the information is registered

3.7 Saving and recovering JP1/FTP settings

Outputting definition information as text:

You can output the registered information in text format. For the output format, use the provided sample.

Definition information that can be output as text:

User-to-login settings
Auto-start program settings
Transmission settings
Log information

Host where the information is registered

3.8 Outputting definition information as text
