1.3.2 Transmitting a file

You register transmission information onto a transmission card and then execute transmission. Logs can be used to check the transmission results.

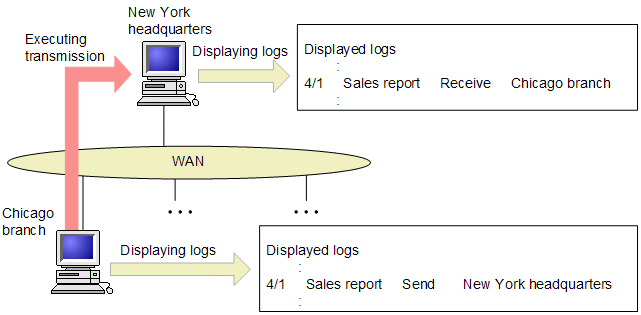

Figure 1‒4: Example of file transmission

Overview of operation	Executing host	Commands that are used
Transmitting a file: Specifies a registered transmission card and then executes transmission. You can use dialog boxes or commands to execute transmission. This example transmits a file from the Chicago branch to the New York headquarters.	Client	`ftstran` (see 3.5 Transmitting files and ftstran - executes transmission in 6. Commands)
Displaying logs: Displays logs to check the result of file transmission. In this example, reception logs can be checked at the New York headquarters and transmission logs can be checked at the Chicago branch.	All hosts	`ftshistory` (see 3.6 Checking the transmission logs and ftshistory - displays log information in 6. Commands)

Overview of operation

Executing host

Commands that are used

Transmitting a file:: Specifies a registered transmission card and then executes transmission. You can use dialog boxes or commands to execute transmission.

This example transmits a file from the Chicago branch to the New York headquarters.

Client

ftstran

In this example, reception logs can be checked at the New York headquarters and transmission logs can be checked at the Chicago branch.

All hosts

ftshistory
